Vortex Keyboard

Vortex Model M SSK KIT

Vortex Model M SSK KIT

$99,999.00 USD
$99,999.00 USD
Sale Sold out
Shipping calculated at checkout.

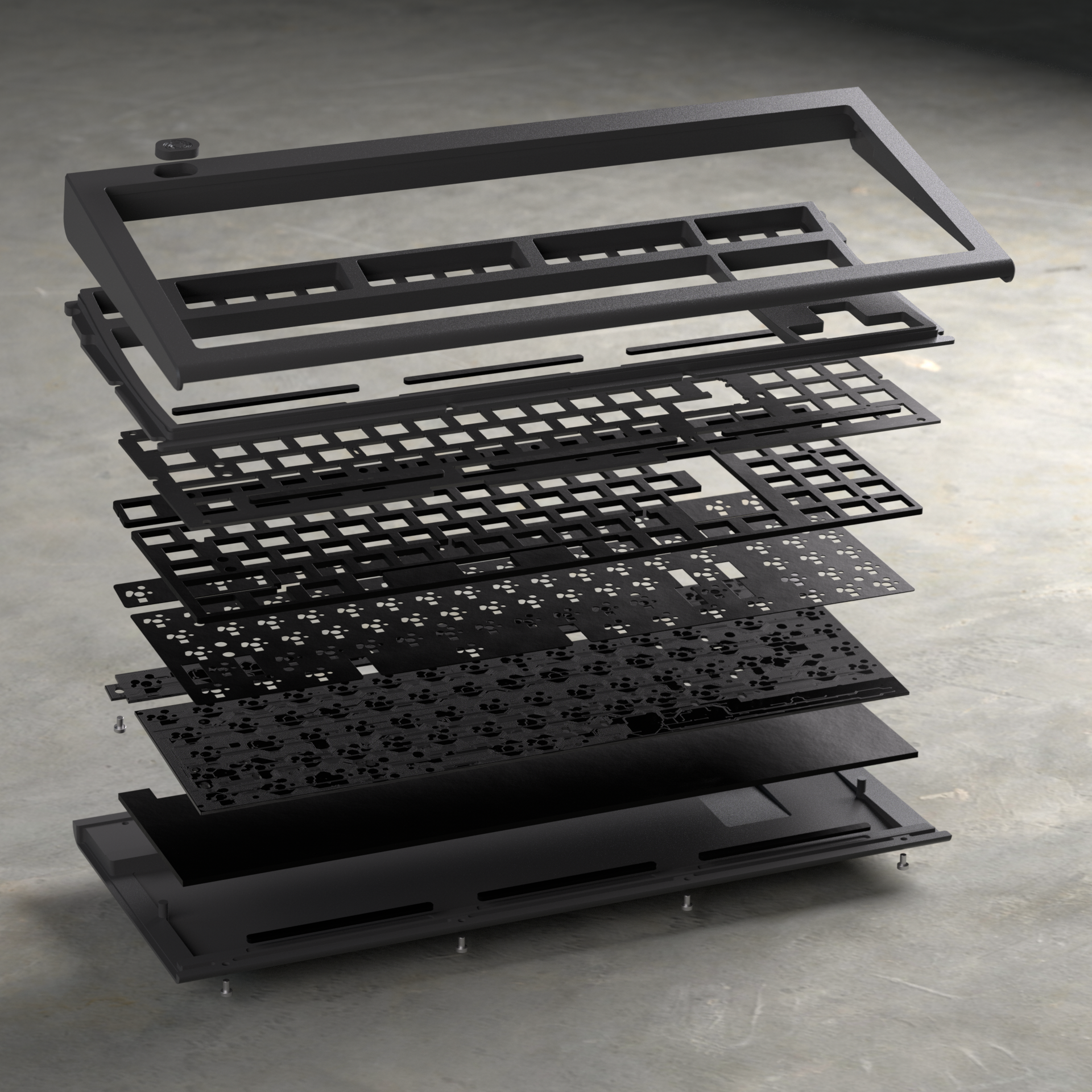

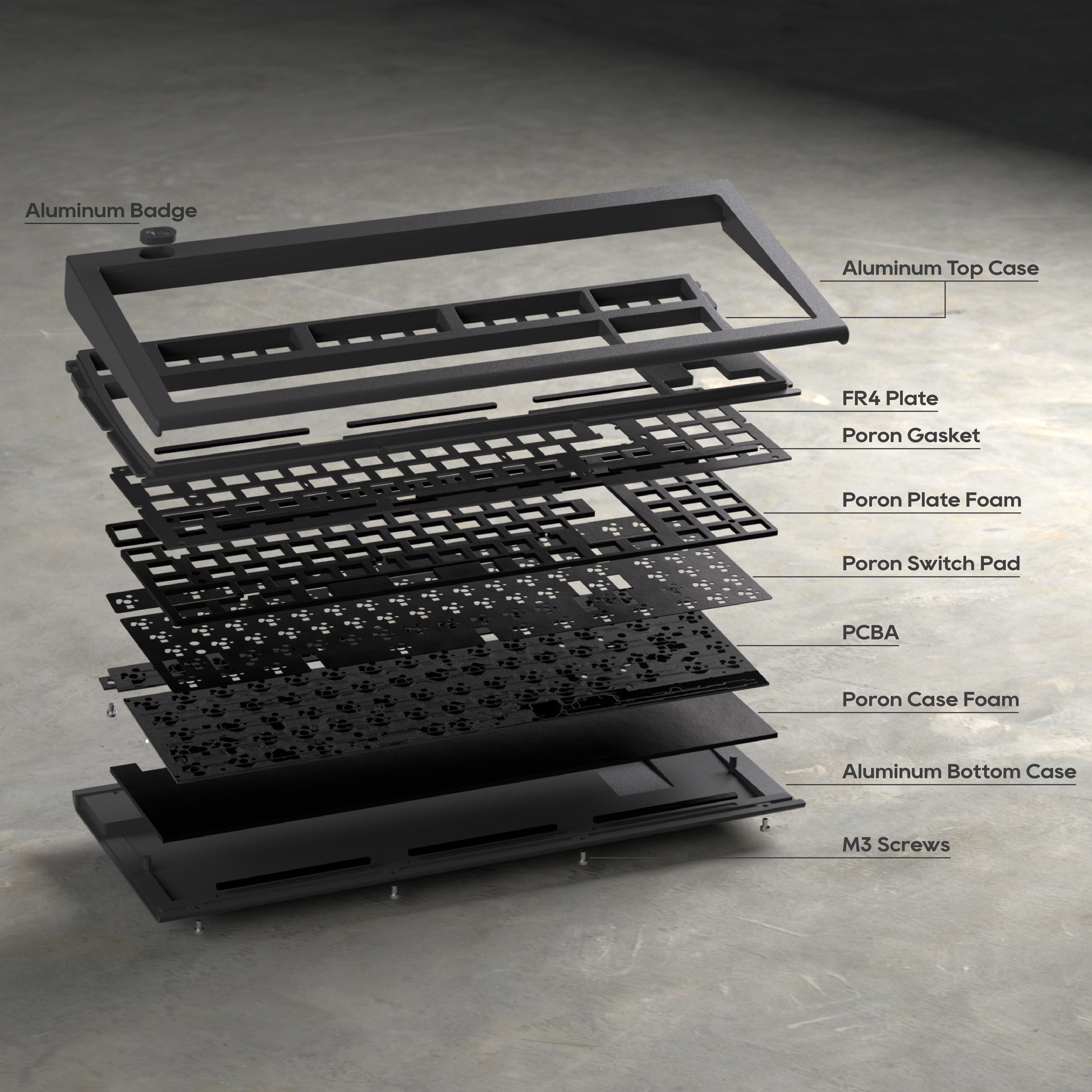

Contents

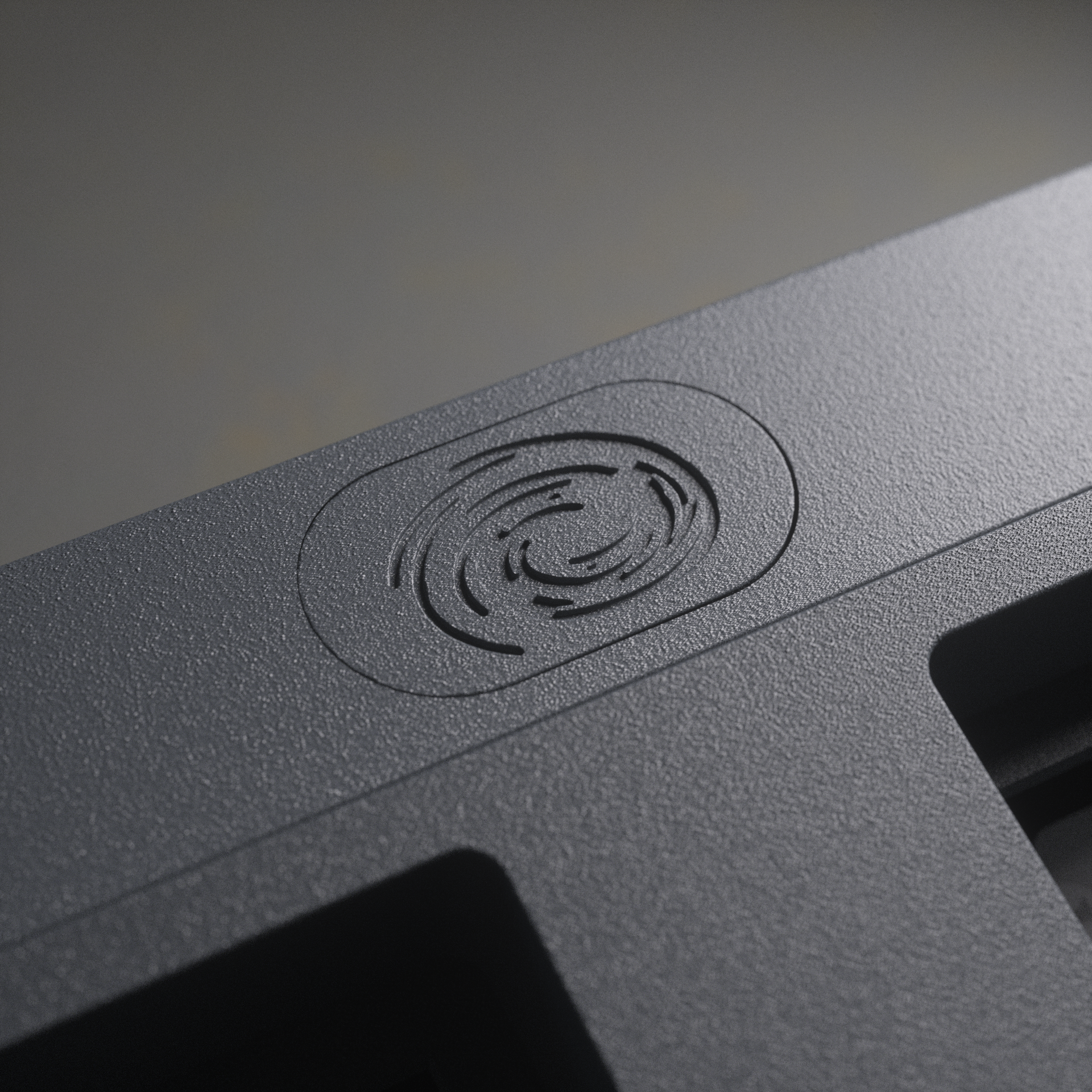

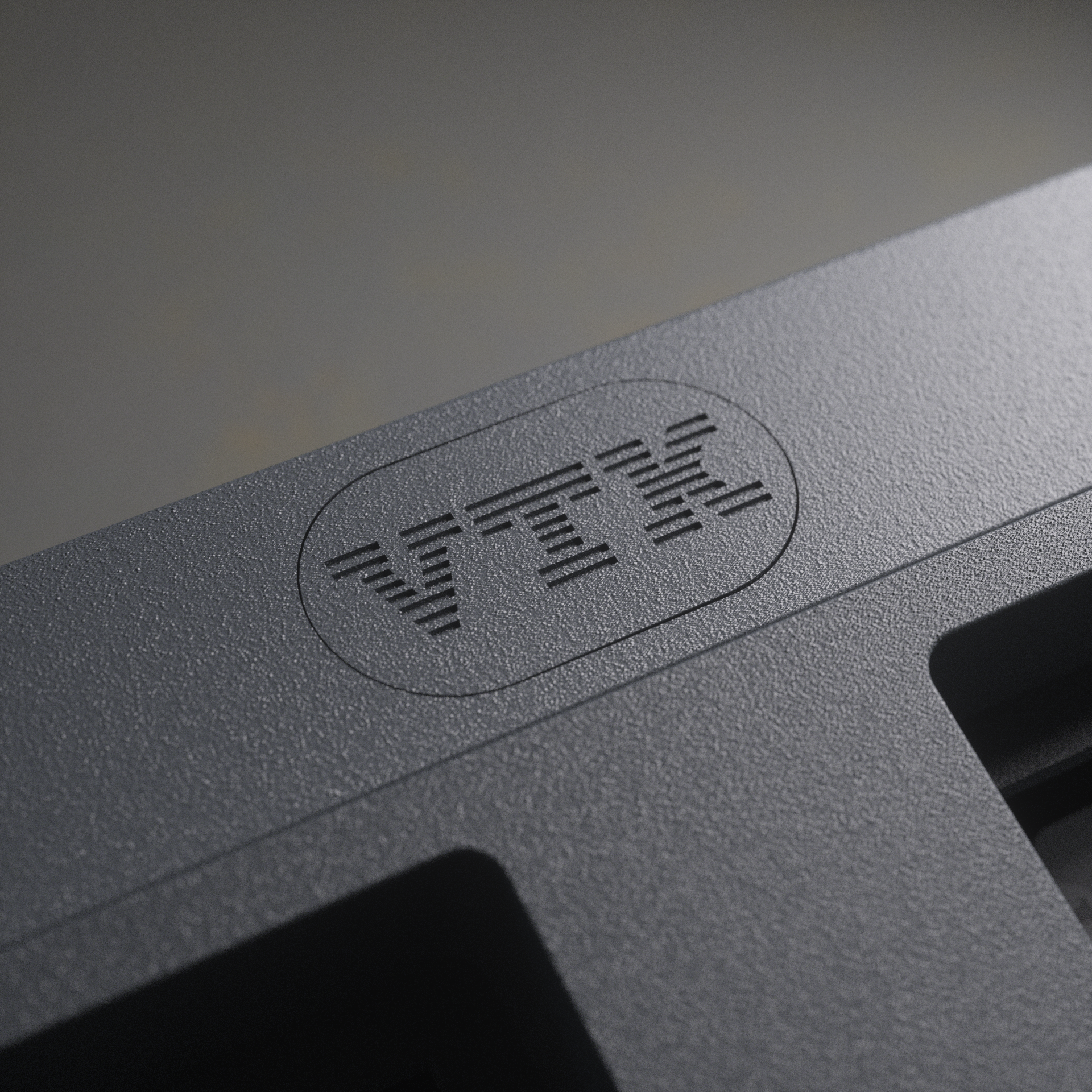

  • Aluminum Badge x2 (Vortex Logo And "VTK")
  • Top And Bottom Case x1

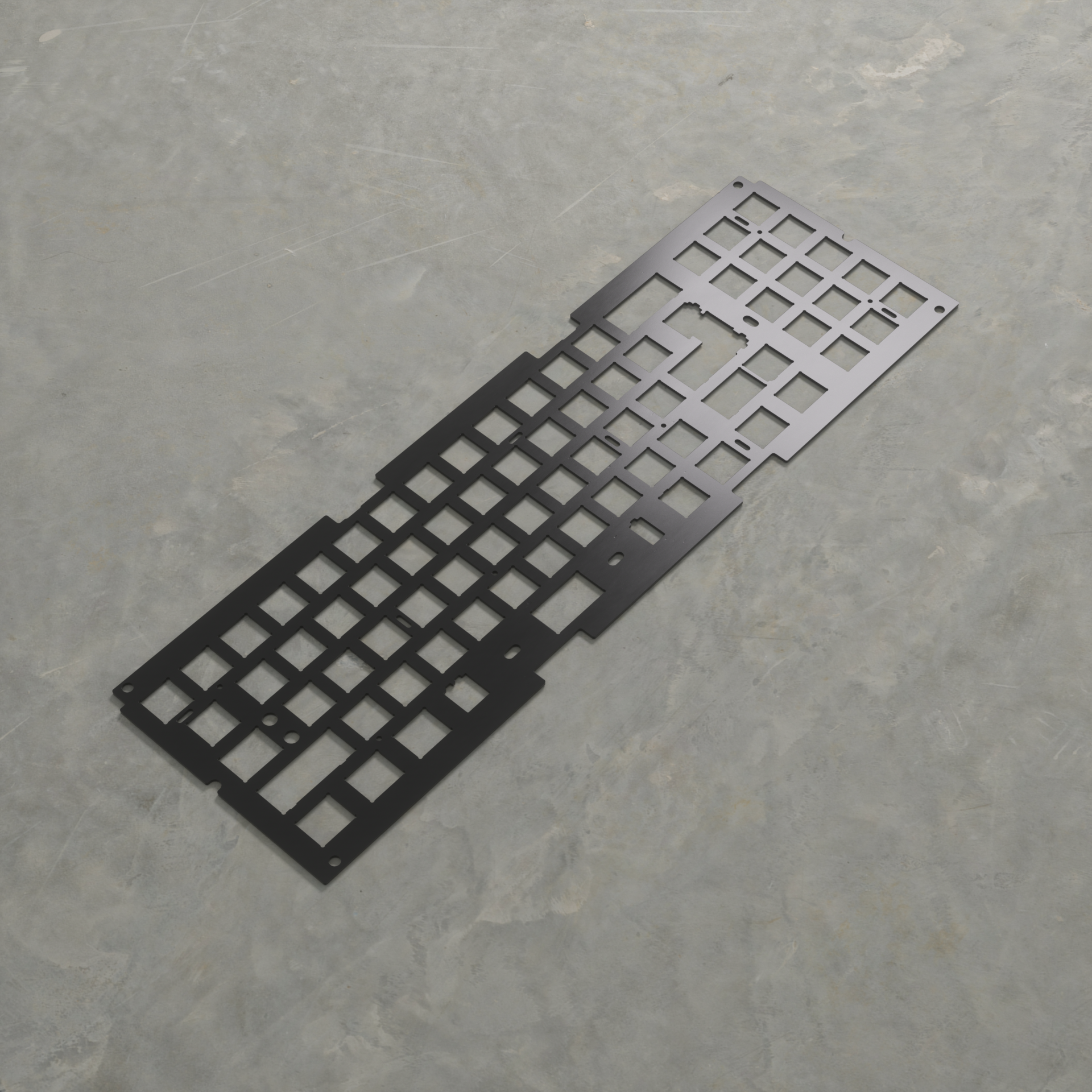

  • FR-4 Plate x1
  • Hot-swap PCB x1
  • USB Daughter Board x1

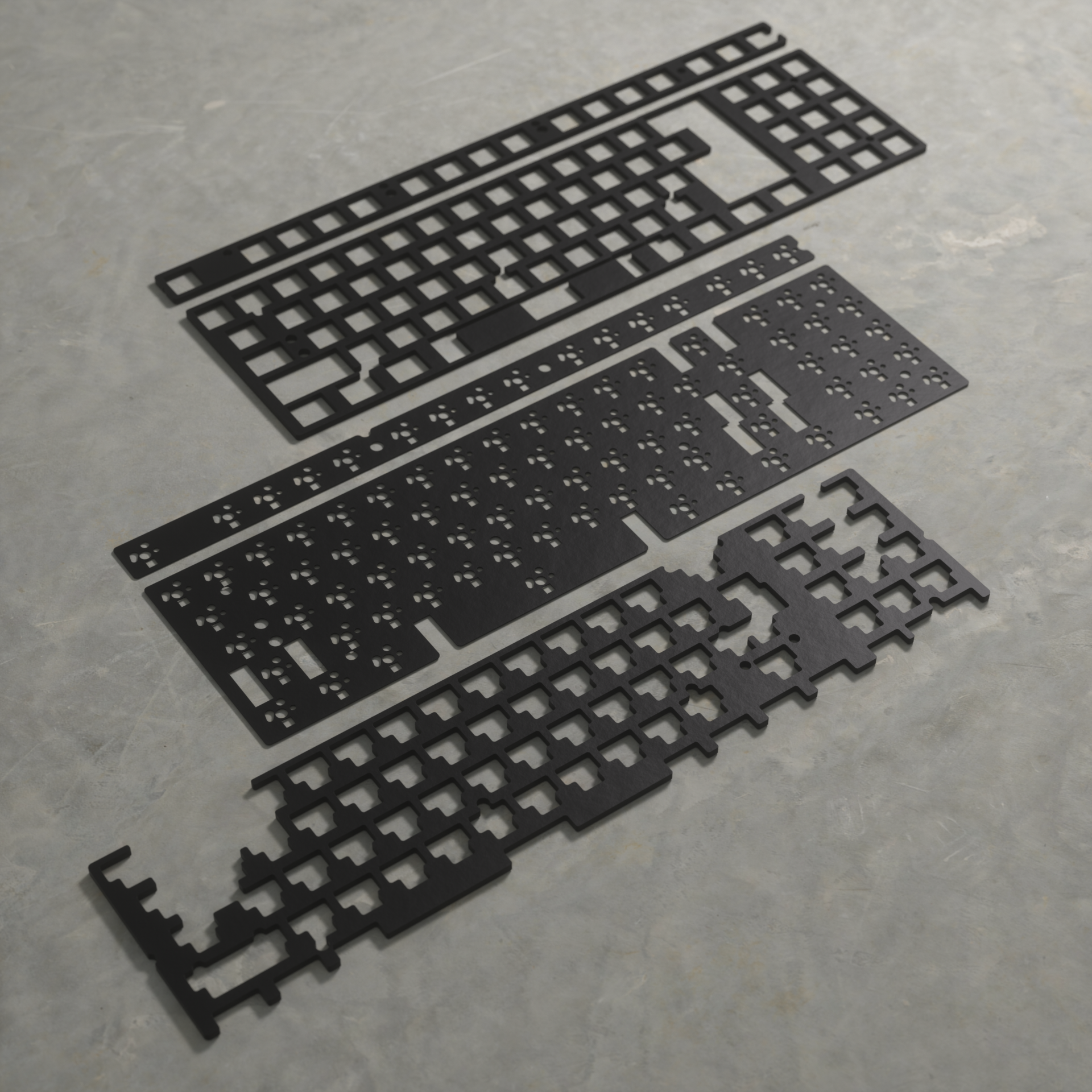

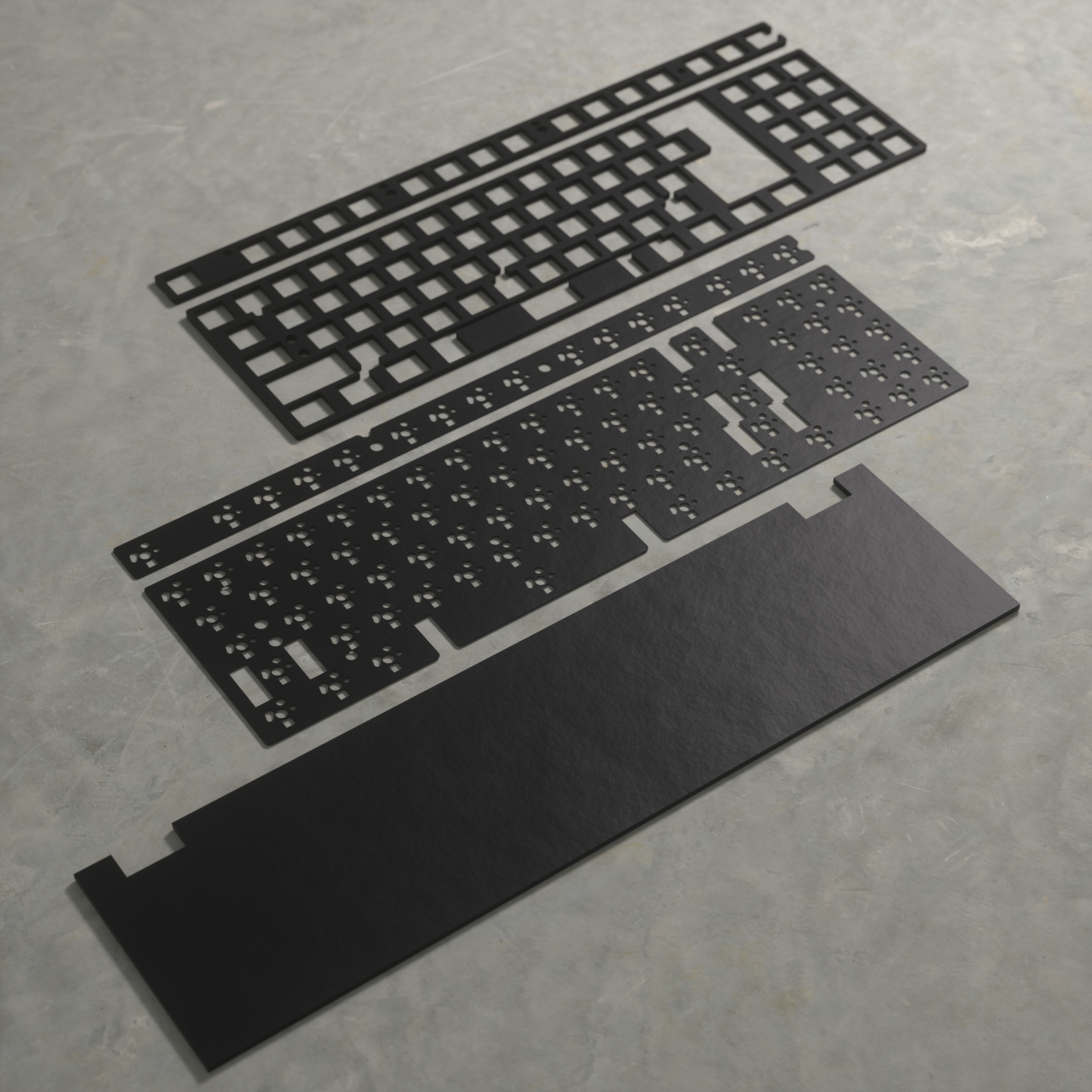

  • Plate Foam: 3mm x2 (Main PCB And F-row)
  • Poron switch Pad: 0.5mm x2 (Main PCB And F-row)
  • Bottom Case Sound-dampening Foam: 3mm x1 (Main PCB)
  • Gasket Set x1
  • M3 Scerw Set x1
  • Rubber Feet Set x1

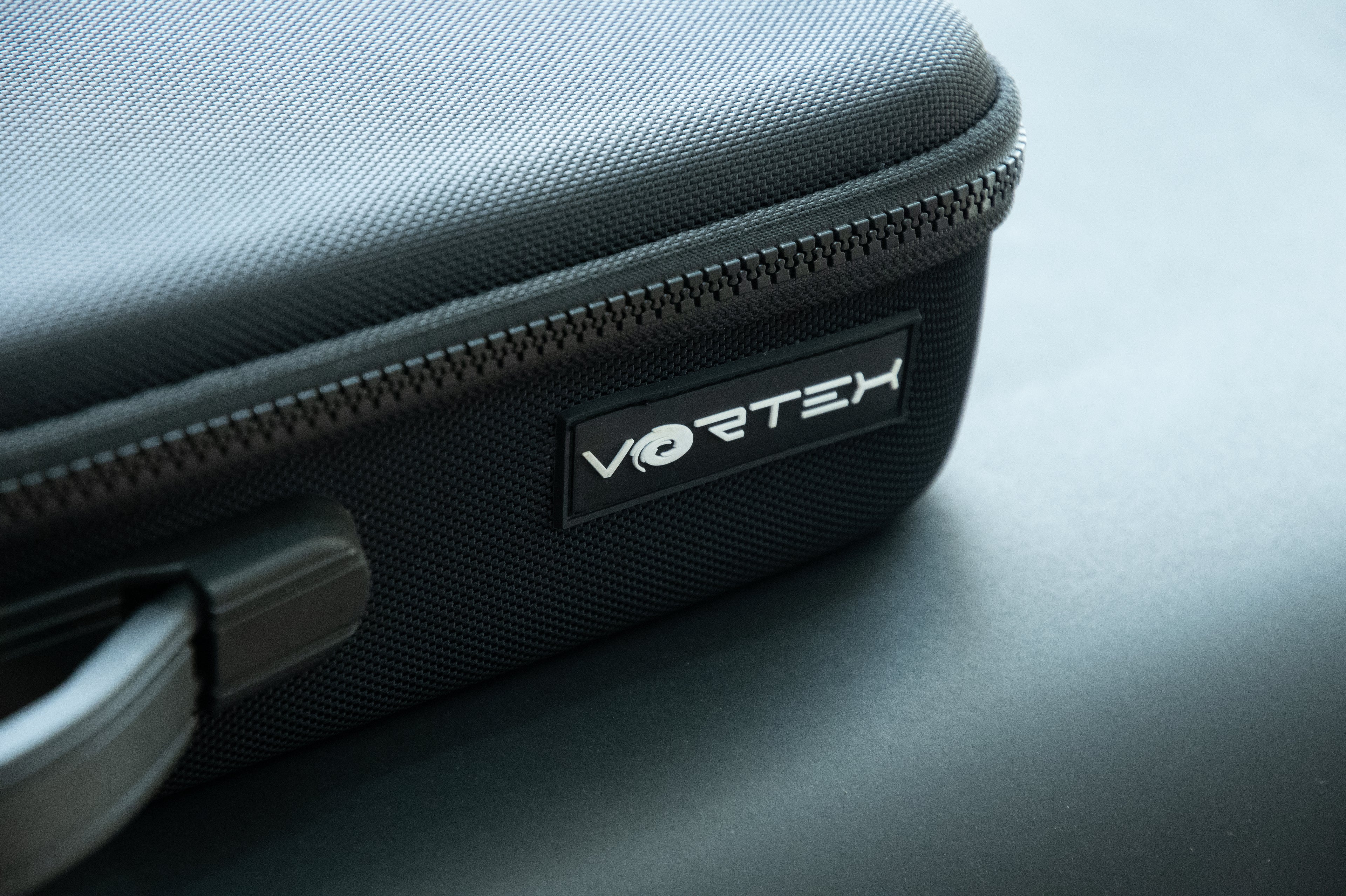

  • Carrying Case x1

Specifications

  • Wired
  • ANSI / ISO Layout
  • WK / WKL

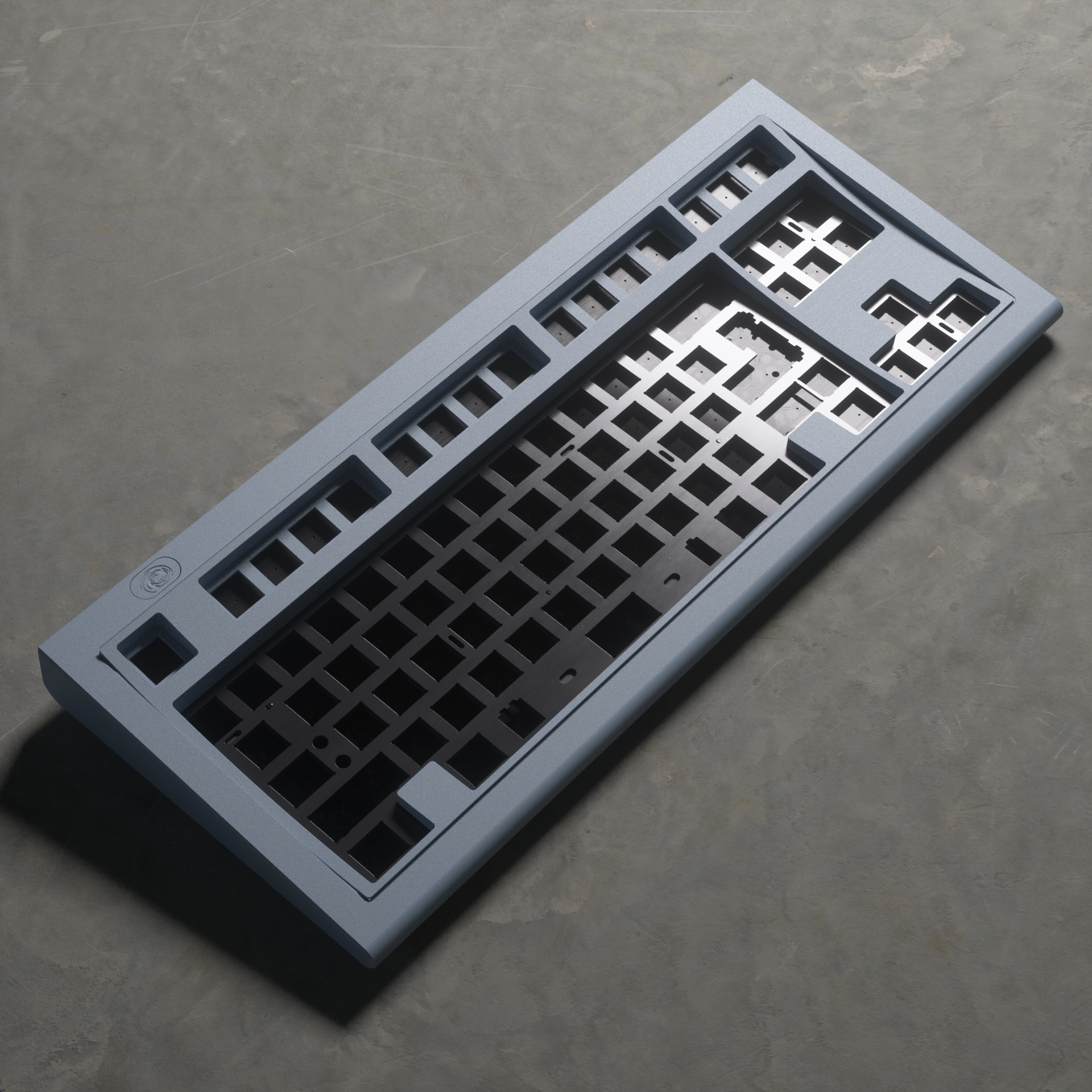

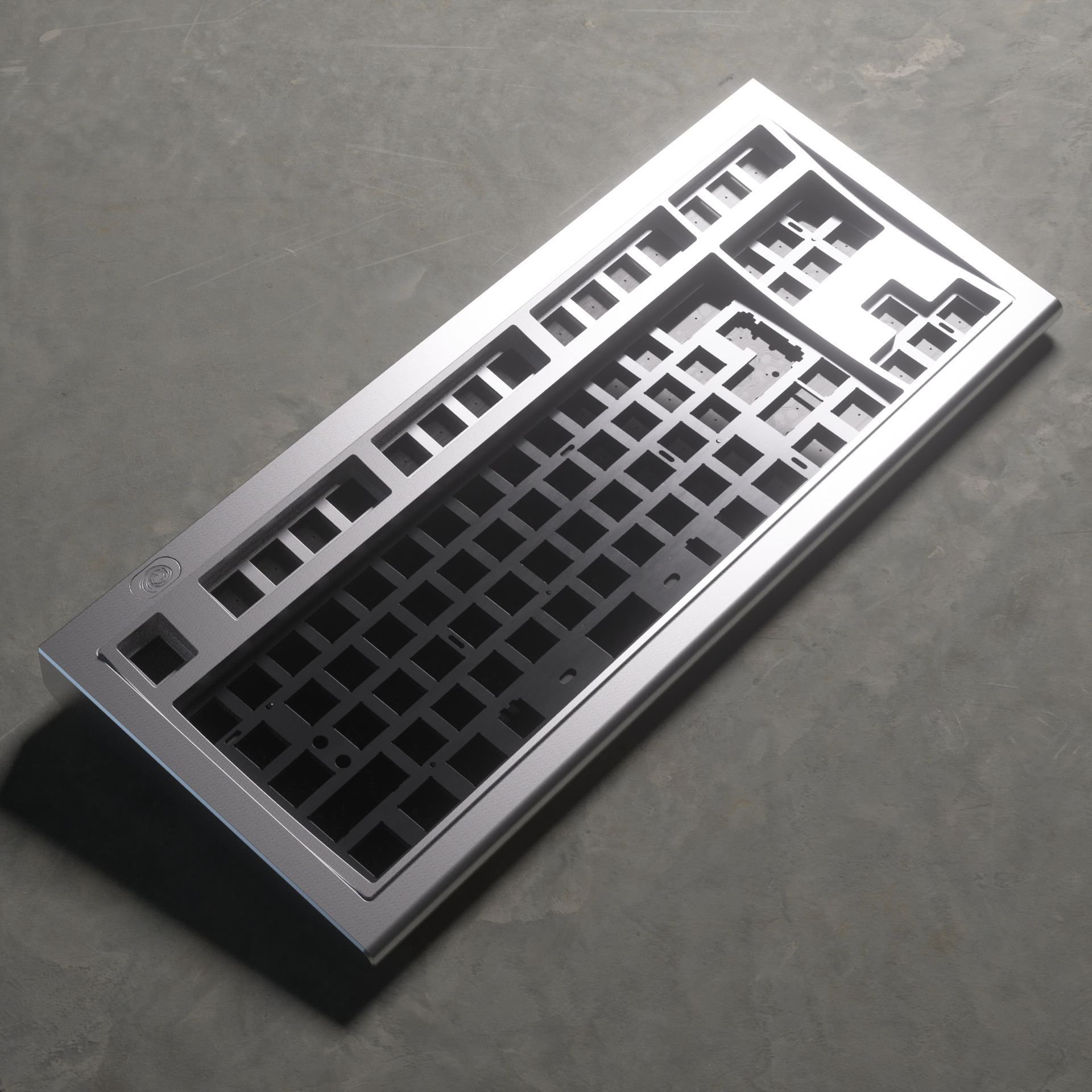

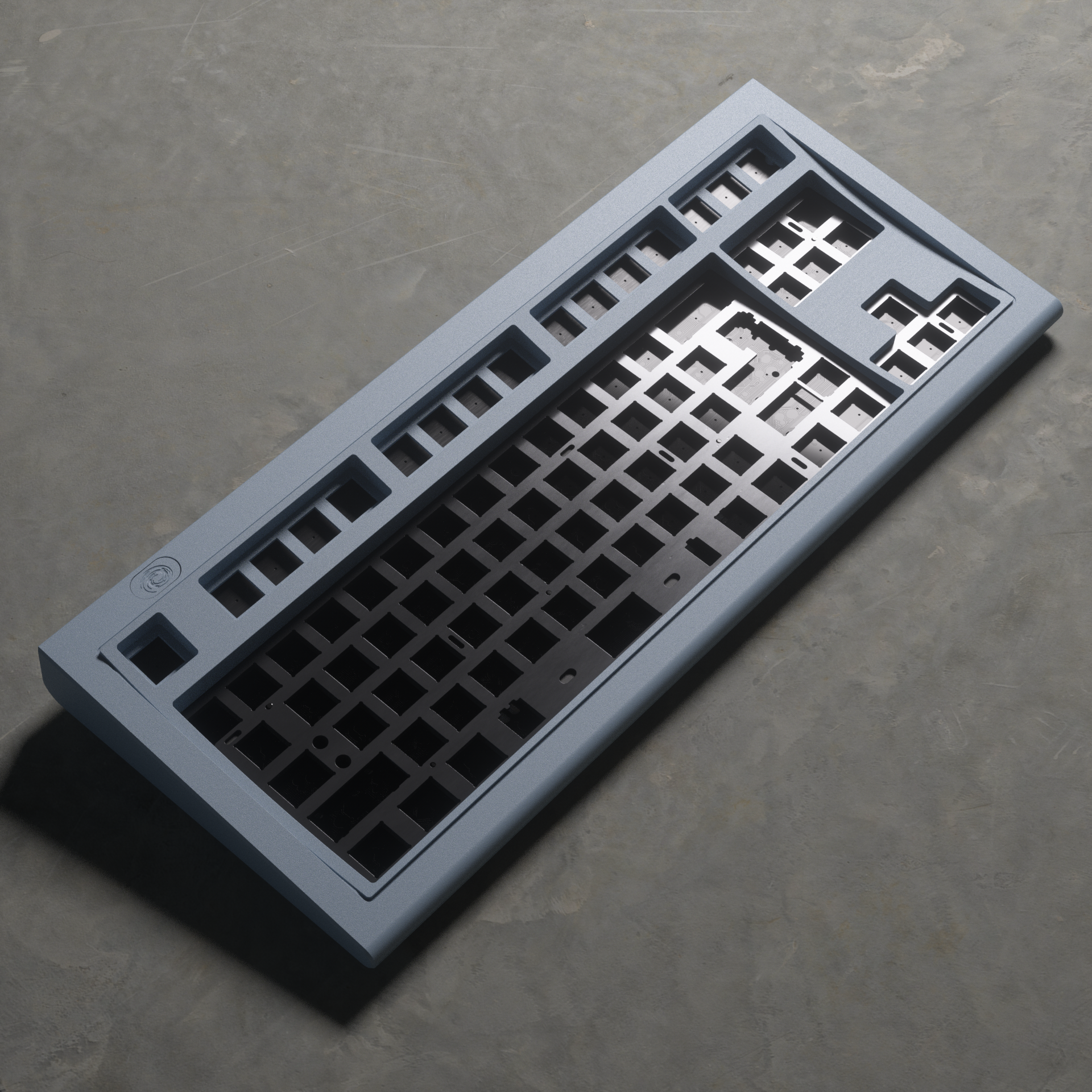

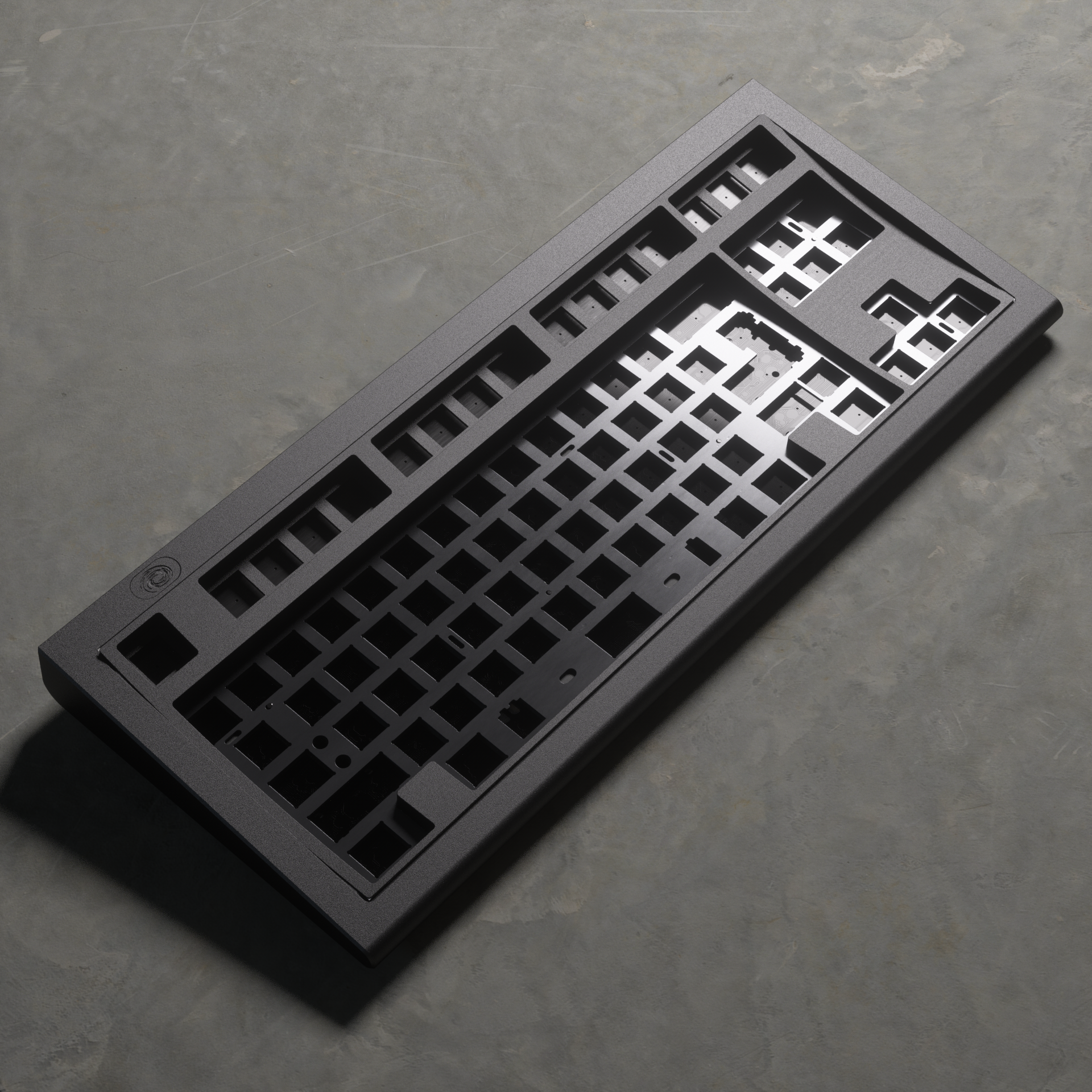

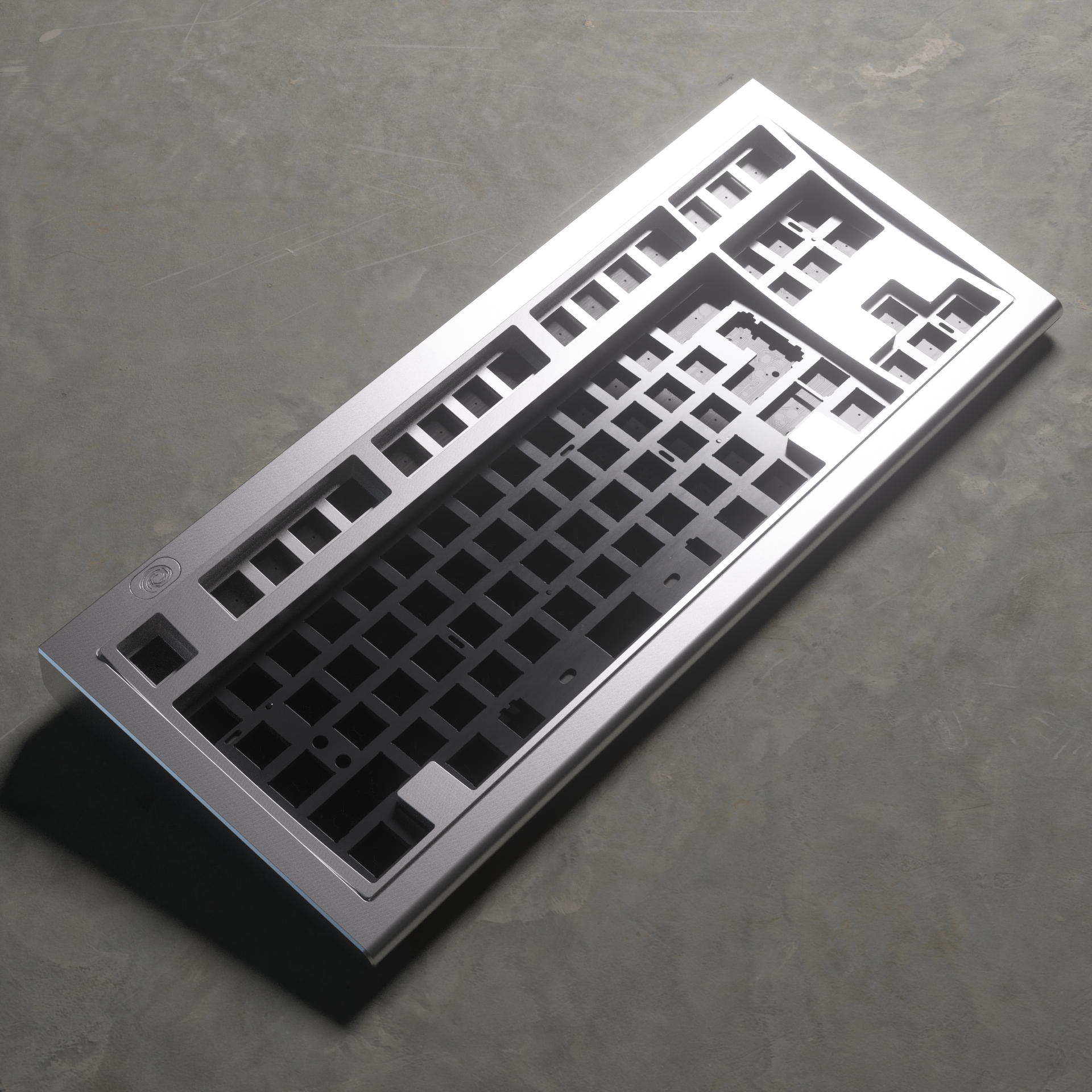

  • Case Color: Black,Space Grey,Silver,Blue
  • Programmable via QMK/VIA/Vial
  • N-Key Rollover
  • Gasket Mount Structure
  • Compatible With MX Switches And Clones (3-pin&5-pin)
  • South-facing Switches And LEDs
  • Customizable RGB Using VIA/Vial Software
  • 1.6 mm Thickness PCB
  • PCB Mount Stabilizers (Not included)
  • USB Type-C Connectivity
  • Vortex Aluminum Badges
  • Only Solderable PCB supports stepped Caps lock and Tsangan layout
*Not Includes:
  • PCB Mount Stabilizers
  • Cable
  • Switches
  • Keycaps
  • Switch Puller
  • Keycap Puller

Slight scratches to a case or any components are acceptable to our quality standard.

If you have any problem or question, please contact your original vendor that you purchased from.

We use the same plate for both ANSI, ISO and Tsangan layout.
If you purchase any PCB with different layout for extras, you won't have to buy an additional plate.

  • Backlit:

- RGB

  • Product Size:

- L*W*H : 39.0*16.5*1.2 cm ± 0.3

 -L*W*H : 39.0*16.5*3.0 cm ± 0.3

  • Product Weight:

- Case only : 1453.0 (g) ± 10

- All components added together: Approximately : 3kg

  • Typing Angle:

- 6°

Slight scratches to a case or any components are acceptable to our quality standard.If you have any problem or question, please contact your original vendor that you purchased from. We use the same plate for both ANSI, ISO and Tsangan layout.If you purchase any PCB with different layout for extras, you won't have to buy an additional plate.

Pre-orders cannot be cancelled after the pre-order period has ended or after the pre-order has been closed!!!

View full details

Update (September 26th, 2023)

Model M SSK Kit and its PCB are now in our office.

We would like to ask you to kindly and patiently wait for us to put and organize the PCB into the Kit one by one in our office.

This process will take some time and we will ship orders out to customers and inform our vendors once we have finished the organizing process.

Thank you for your understanding.

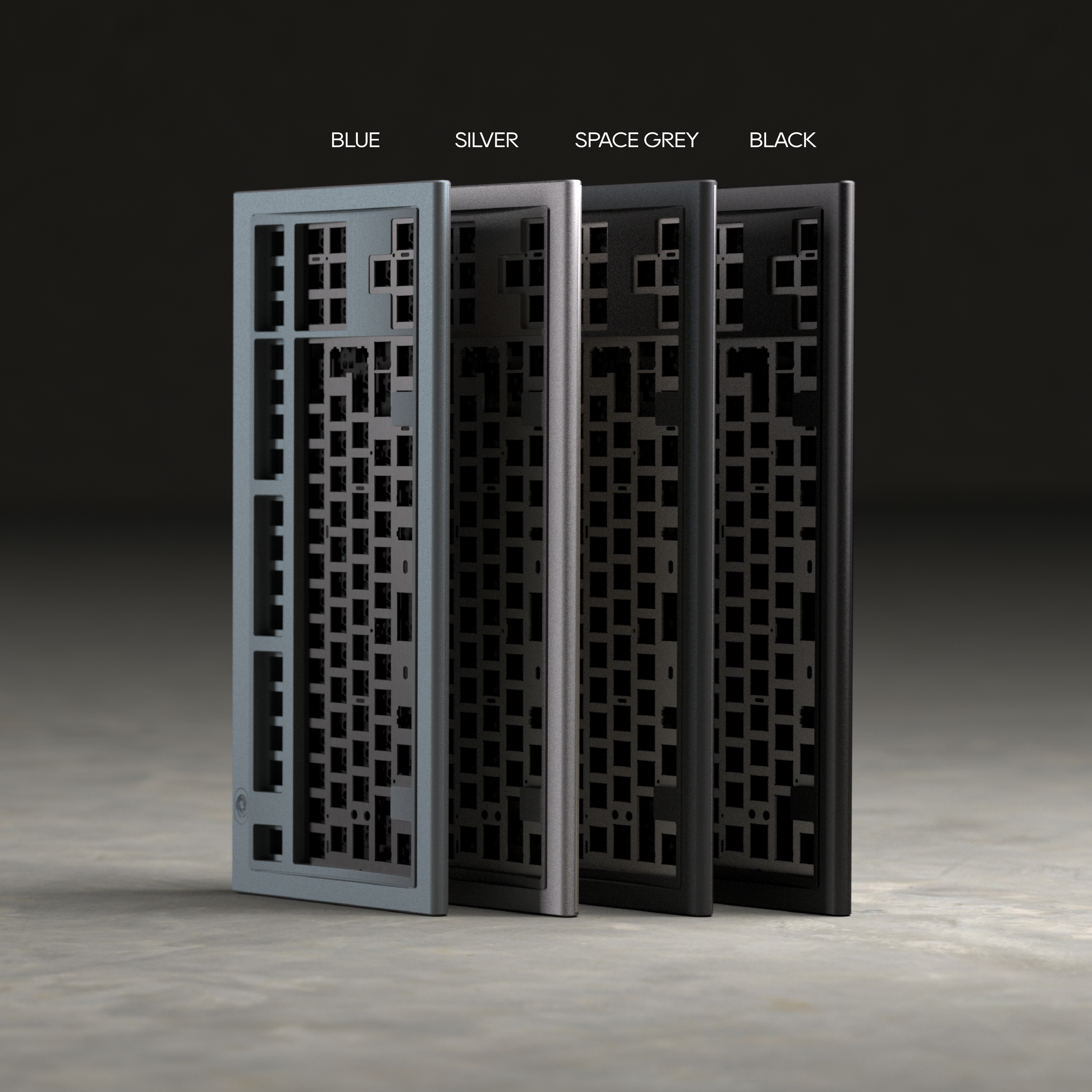

4 Different Color

Blue, Silver, Space Grey and Black

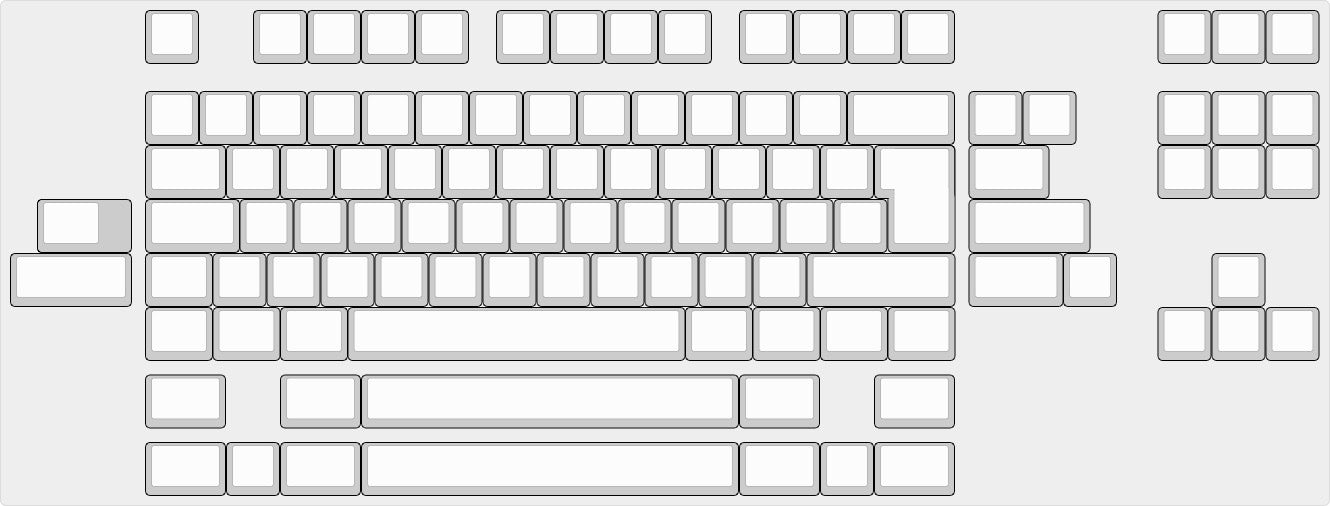

WK and WKL with ANSI and ISO

WK Case could support 7u and 6.25u PCB

QMK/VIA/Vial

Supports QMK/VIA/Vial for easy and accessible key remapping functions based on individuals needs.

Gasket Mount, N-Key Rollover

1 5

Collapsible content

Warranty

Since this product is not a fully assembled keyboard, it could not be return, refund and doesn't include 12 months of warranty.

Notice

※ To ensure a smooth and successful shipment of your order, please provide your shipping information in English.

※ All pictures shown are for illustration purpose only. Actual products may vary due to product enhancement.

※ Duties and taxes are not included in shipping fee.

※ Since this product is not a fully assembled keyboard, it could not be return, refund and doesn't include 12 months of warranty.
