VortexKeyboard

Multix TKL VIA

Multix TKL VIA

$999,999.00 USD
$999,999.00 USD
Sale Sold out
Shipping calculated at checkout.
Color
Switch Type

Multix TKL VIA

  • TKL format mechanical keyboard
  • Supports VIA for key mapping and macro functions
  • Equipped with PBT double-shot cherry profile keycaps

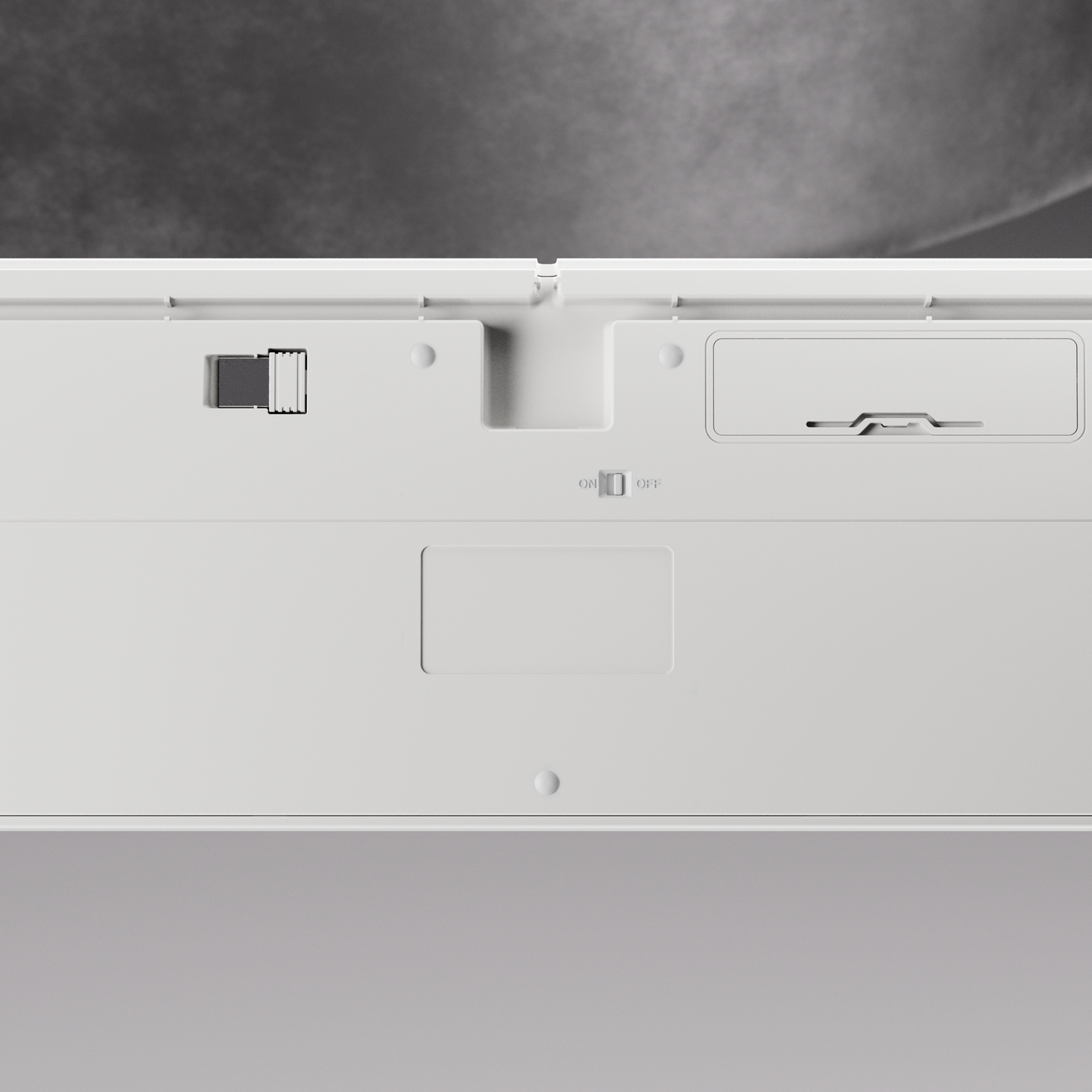

  • Wireless connection including bluetooth and 2.4GHz. Up to 5 devices could be connected to one Multix TKL VIA

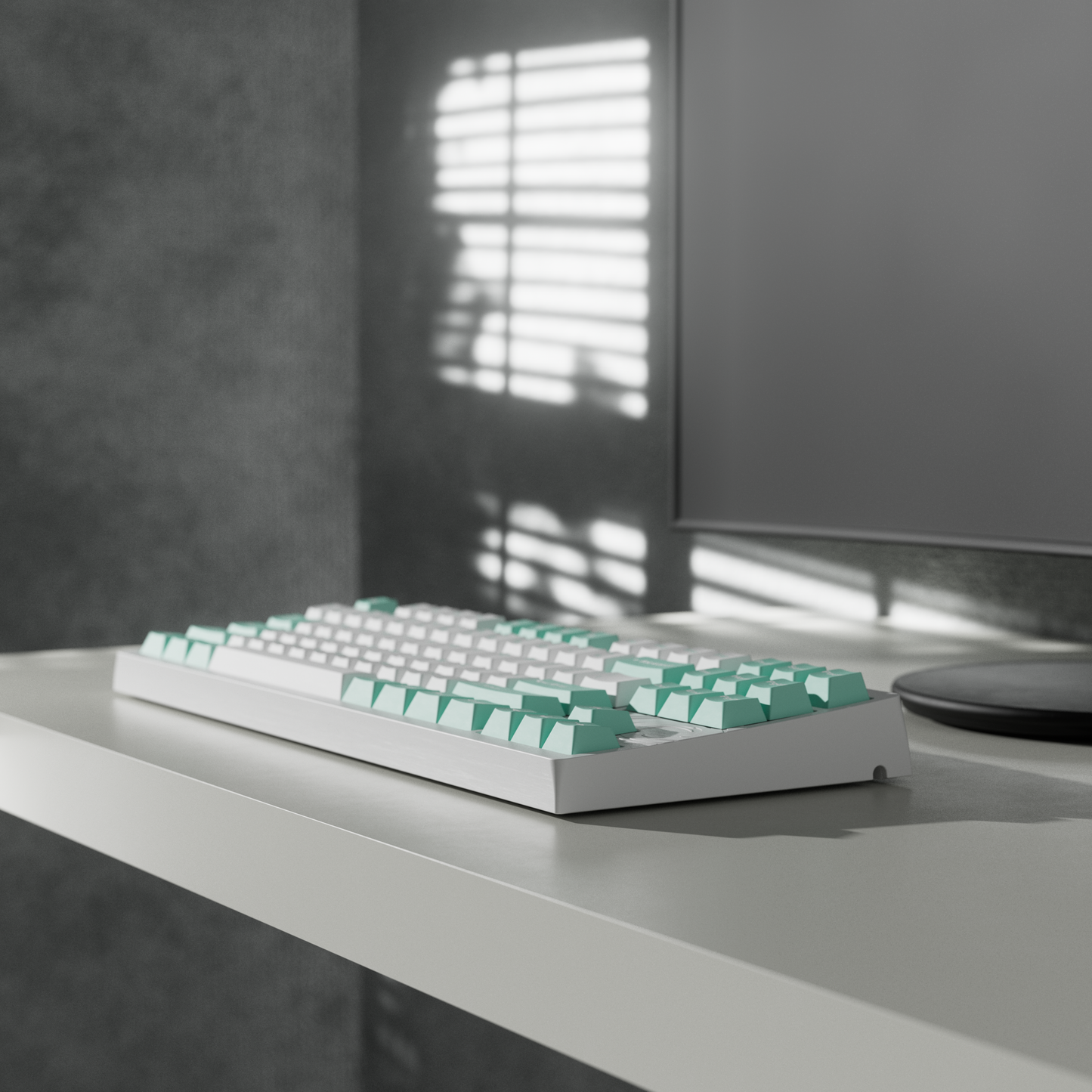

  • N-key rollover

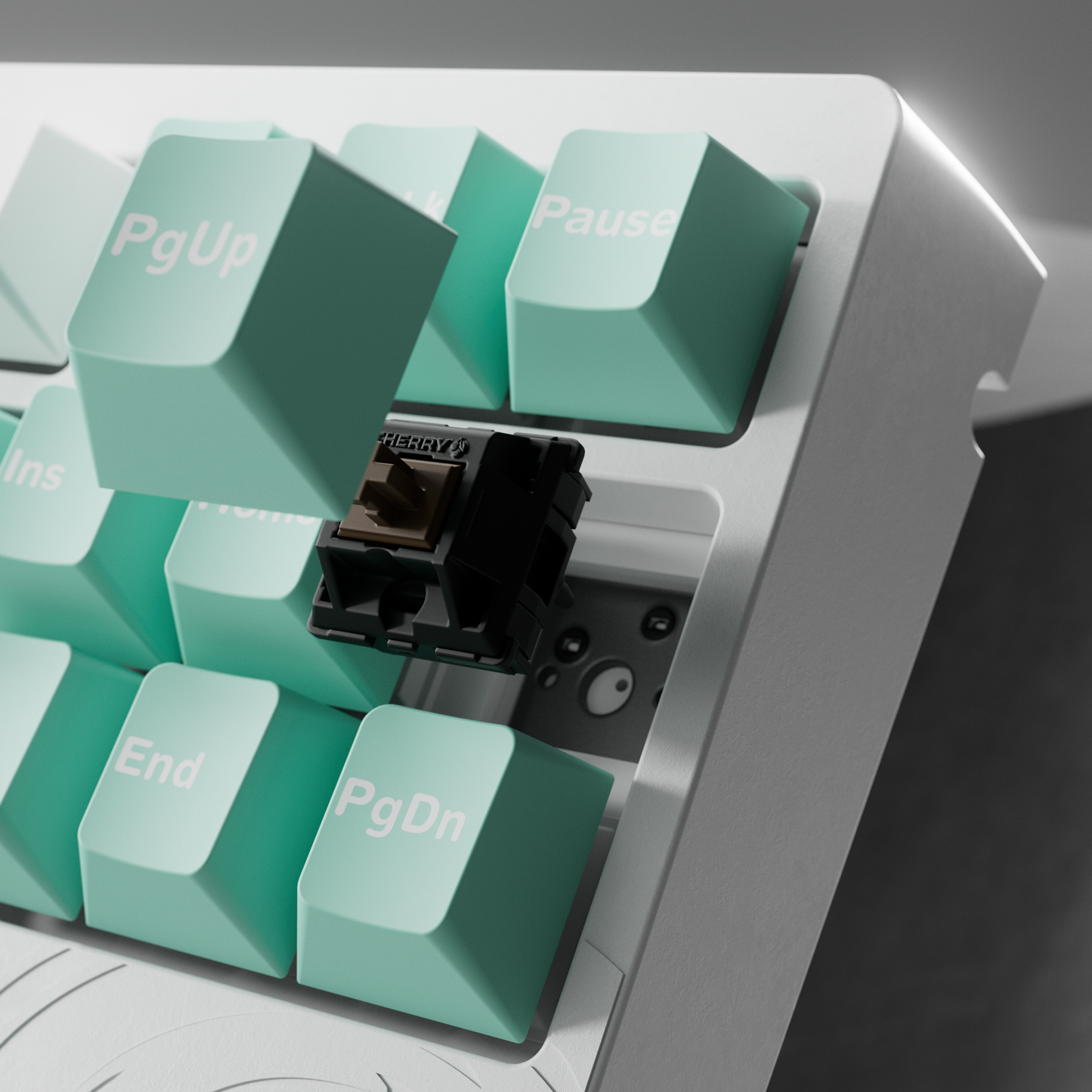

  • 1.6mm hot swap PCB
  • The default layout is ANSI 6.25u layout
  • PCB supports multi layout, including 7u spacebar, split backspace, and ISO layout
  • PCB screw-in stabilizers
  • Cherry MX and Gateron G Pro switches to choose from
  • PCB supports 3 and 5 pin mechanical switches

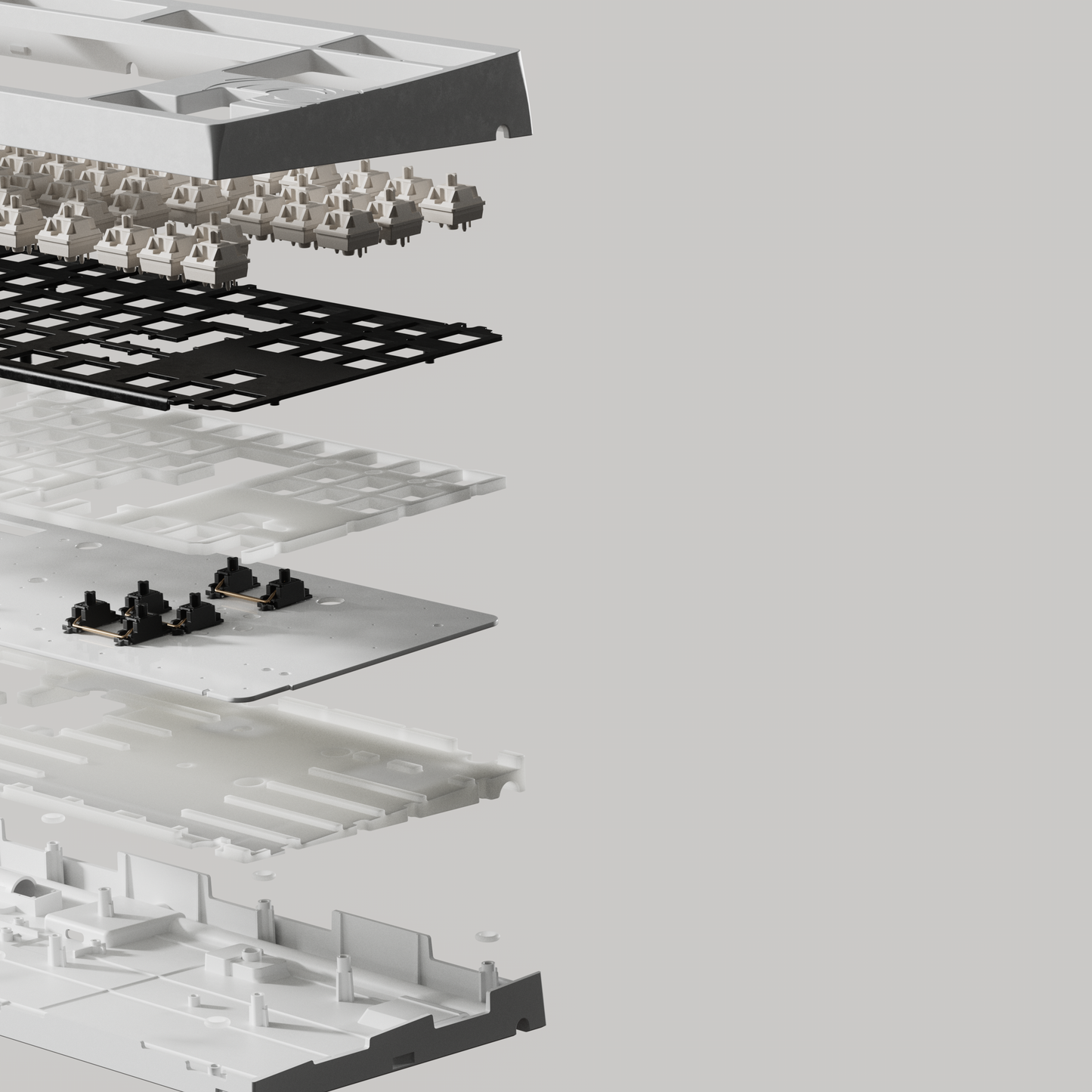

  • Silicon dampening pad below the steel mounting plate
  • Bottom silicon pad beneath the PCB module

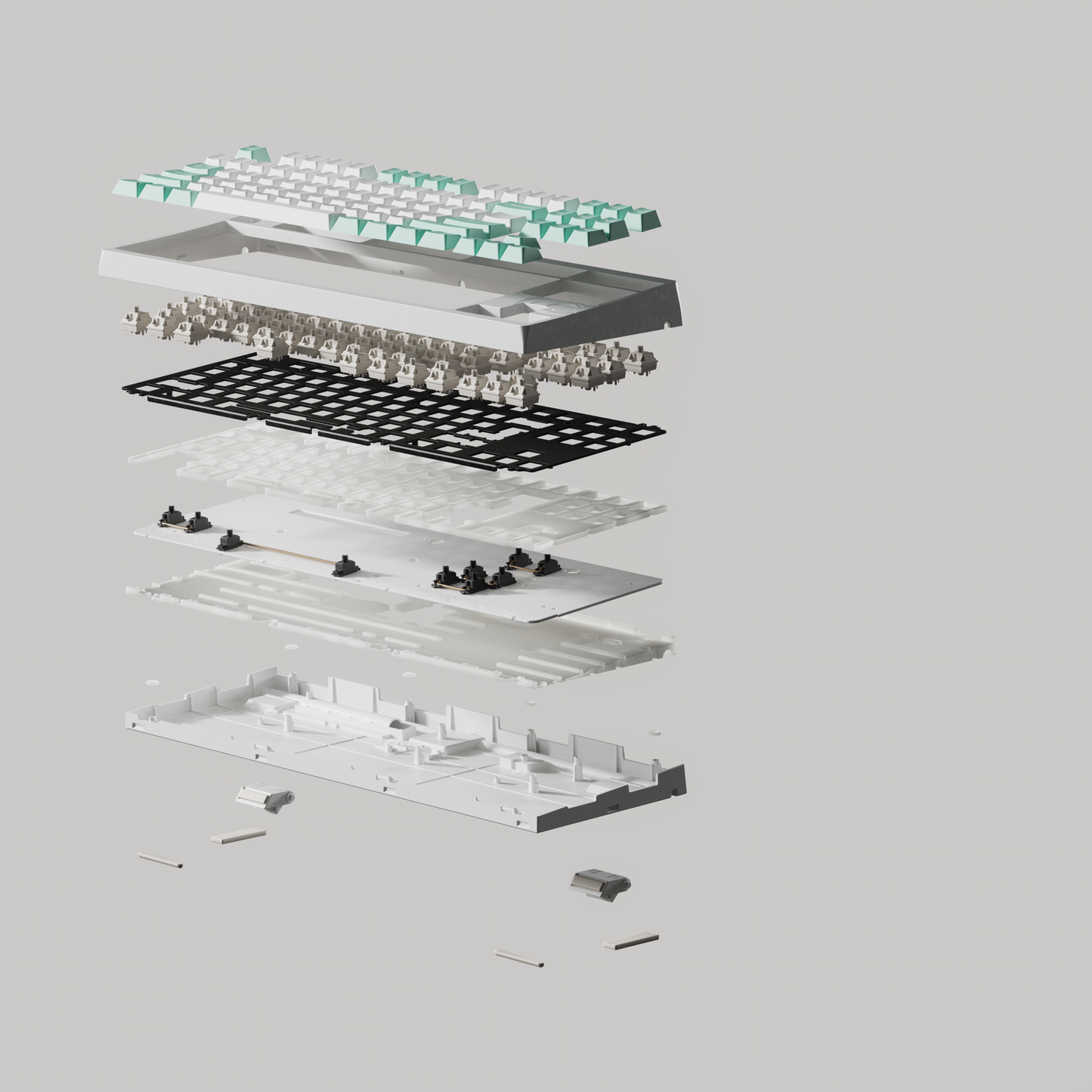

  • O-ring structure + stack mount
  • ABS material and spray coated top and bottom case
  • Additional colored keycaps are included for users to change/use

Content

  • Keyboard
  • User Manual
  • USB Type-C Cable
  • Additional Keycaps
  • Keycap Puller
  • Switch Puller

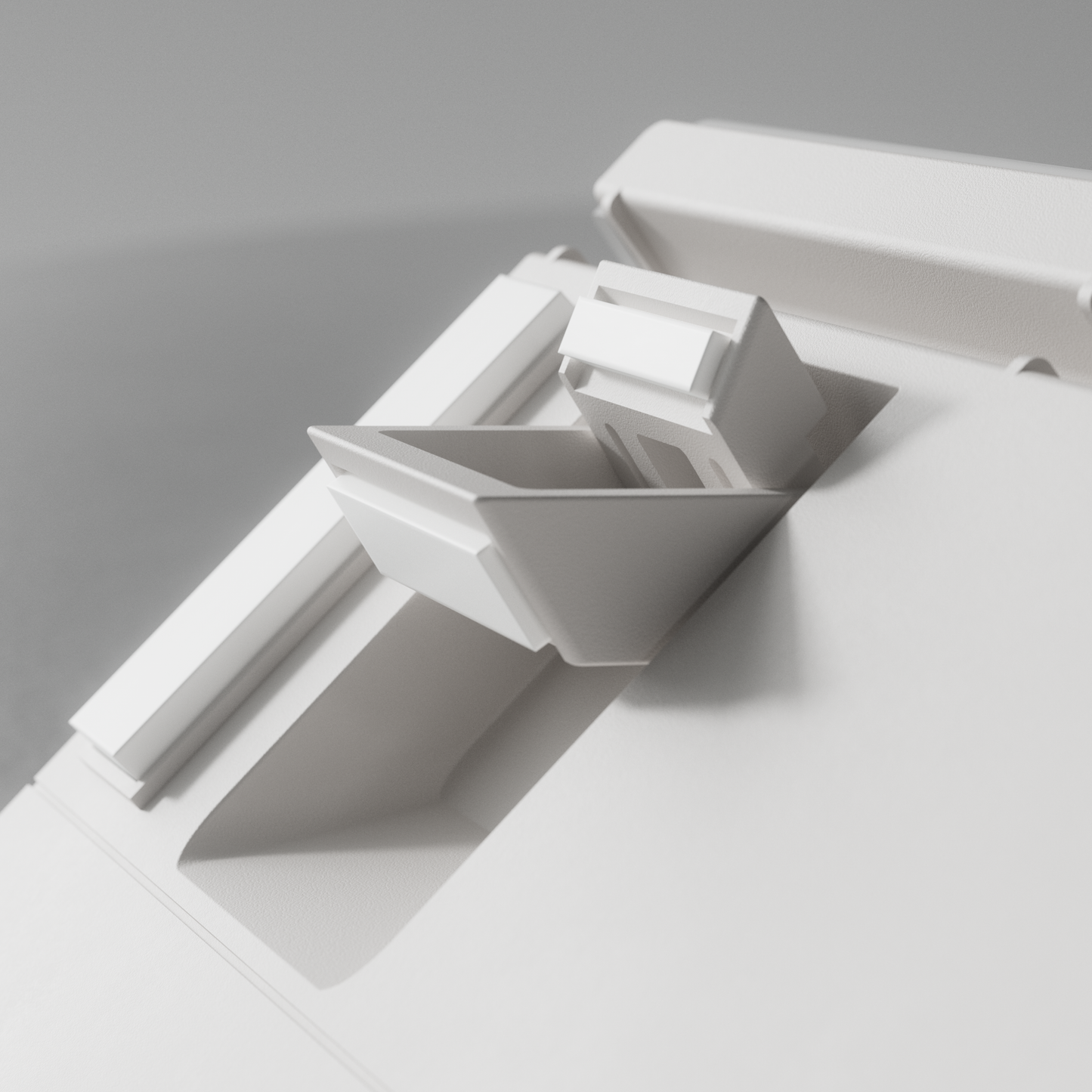

Typing angle

Without feet: 6°

With feet (first stage): 7°

With feet (second stage): 11°

Size & Weight

35.7*14.7*2.5 cm(F-row height) ± 0.3

35.7*14.7*1.7(front height) ± 0.3

1200(g) ± 10

View full details

Preorder will be opened soon!

This model is currently undergoing the certification process. Production will commence once the necessary certifications have been completed and approved

  • Estimated arrival date to Vortex's office : Late November, 2024
  • Estimated shipping date to customers : Mid December, 2024

PCB layout provides compatibility with features such as split Backspace, split right Shift, 7u spacebar, ISO Enter, stepped Capslock, and standard ISO/ANSI configuration.

*USERS NEED TO PREPARE CORRESPONDING KEYCAPS AND STABILIZERS

Supports open-source software: VIA (only applicable to VIA Version 3.0).
Accessible either through the VIA official website or by directly downloading the software.
*Please ensure not to enable compatibility with V2 features (using V2 definitions) before uploading the JSON files.
