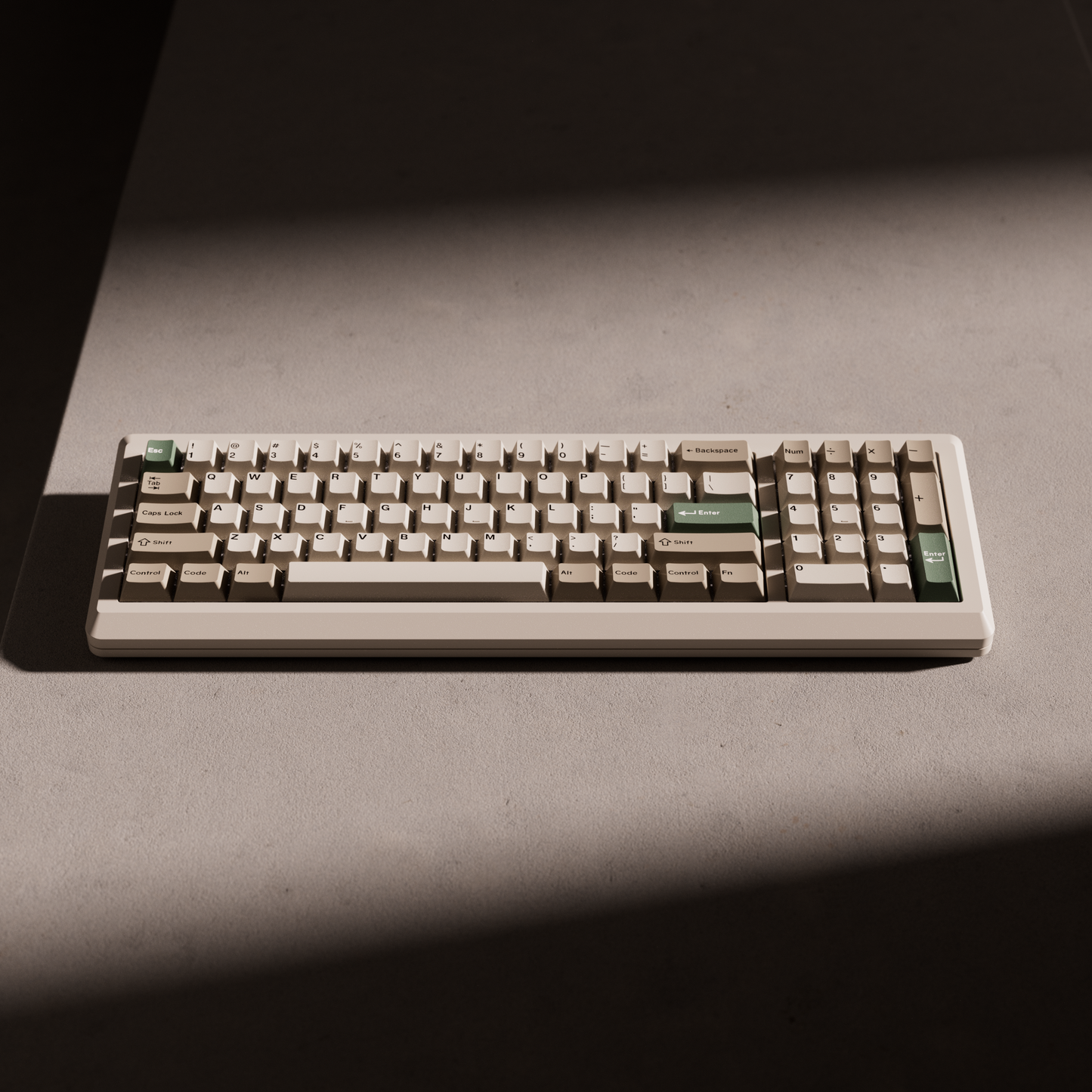

Vortex Keyboard

M0110A Kit

M0110A Kit

$249.00 USD
$249.00 USD
Sale Sold out
Shipping calculated at checkout.
Color

*E-Creamy color will not be restocked

Doesn't include cable, stabilizers, switches and keycaps.

This product doesn't support split right shift, 7u spacebar and Tsangan layout

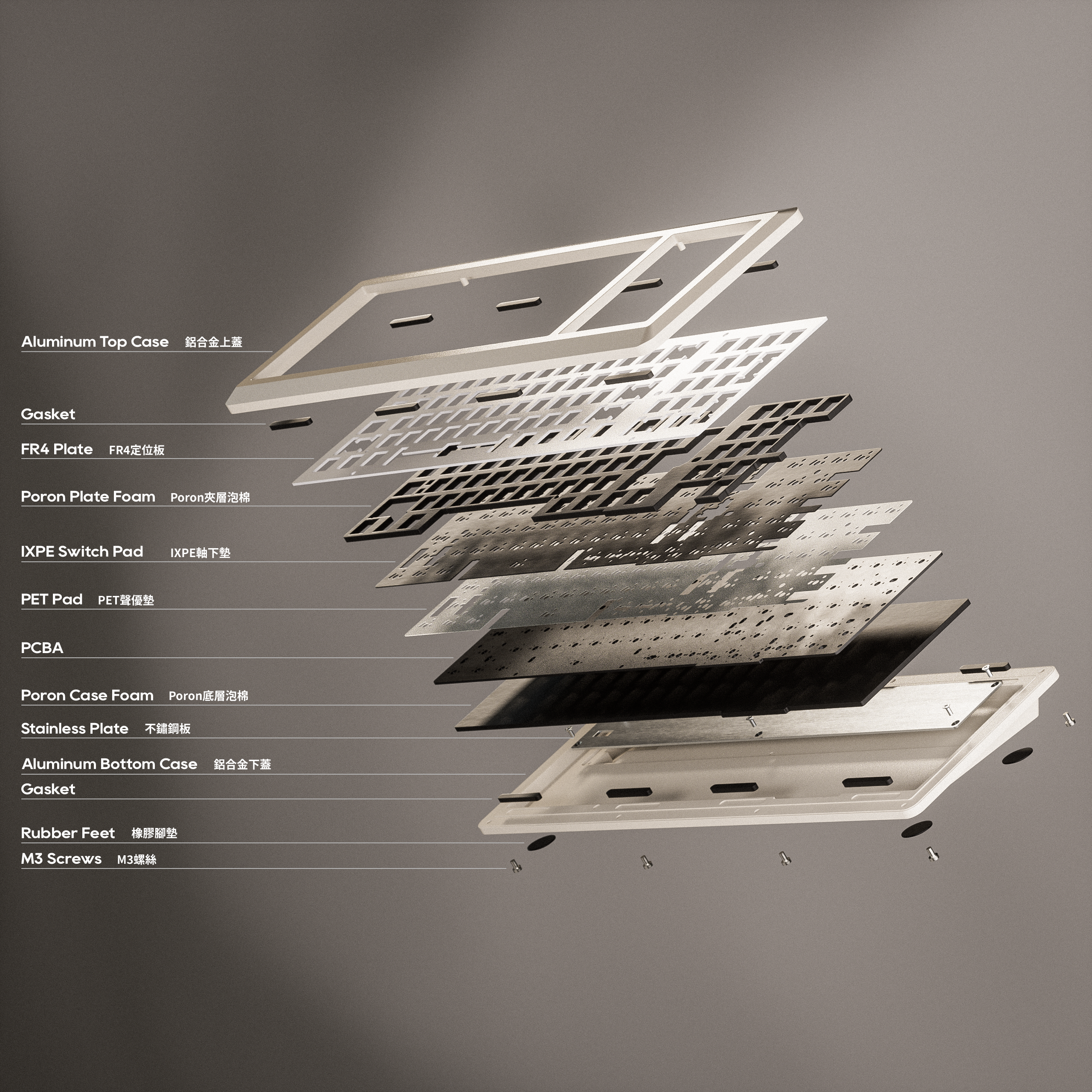

Content

  • Carrying Case
  • Foam Set (Poron plate foam/case foam,IXPE switch pad and pet pad)*1
  • Screw Set *1
  • Rubber Feet set *1
  • Gasket Set *1
  • Aluminum Bottom and Top Case *1
  • Hot-swappable PCB *1
  • Daughter Board *1
  • FR4 Plate *1
  • Stainless Bottom Cover Plate *1

Specification

  • Wired Only
  • QMK/VIA (VIA V3) Compatible
  • FR4 Mounting Plate
  • 1.6mm Non-flex Cut Hot Swap PCB
  • USB Daughter Board x1
  • USB Type-C Connectivity
  • M0110A kit and M0110A-1800 VIA docs are designed for V3.

    Please ensure that do not activate the "Use V2 definitions" option while loading the files.

  • For Foam set, we have included both M0110A and M0110A-1800’s switch pad foam in one foam set
  • M0110A Kit’PCB and M0110A-1800 Kit’s PCB shares the same json file and bin file
  • Doesn’t include stabilizers, switches,keycaps,keycap puller,switch puller, and cable
View full details

Available Now!

Orders will be shipped out within 7 business day

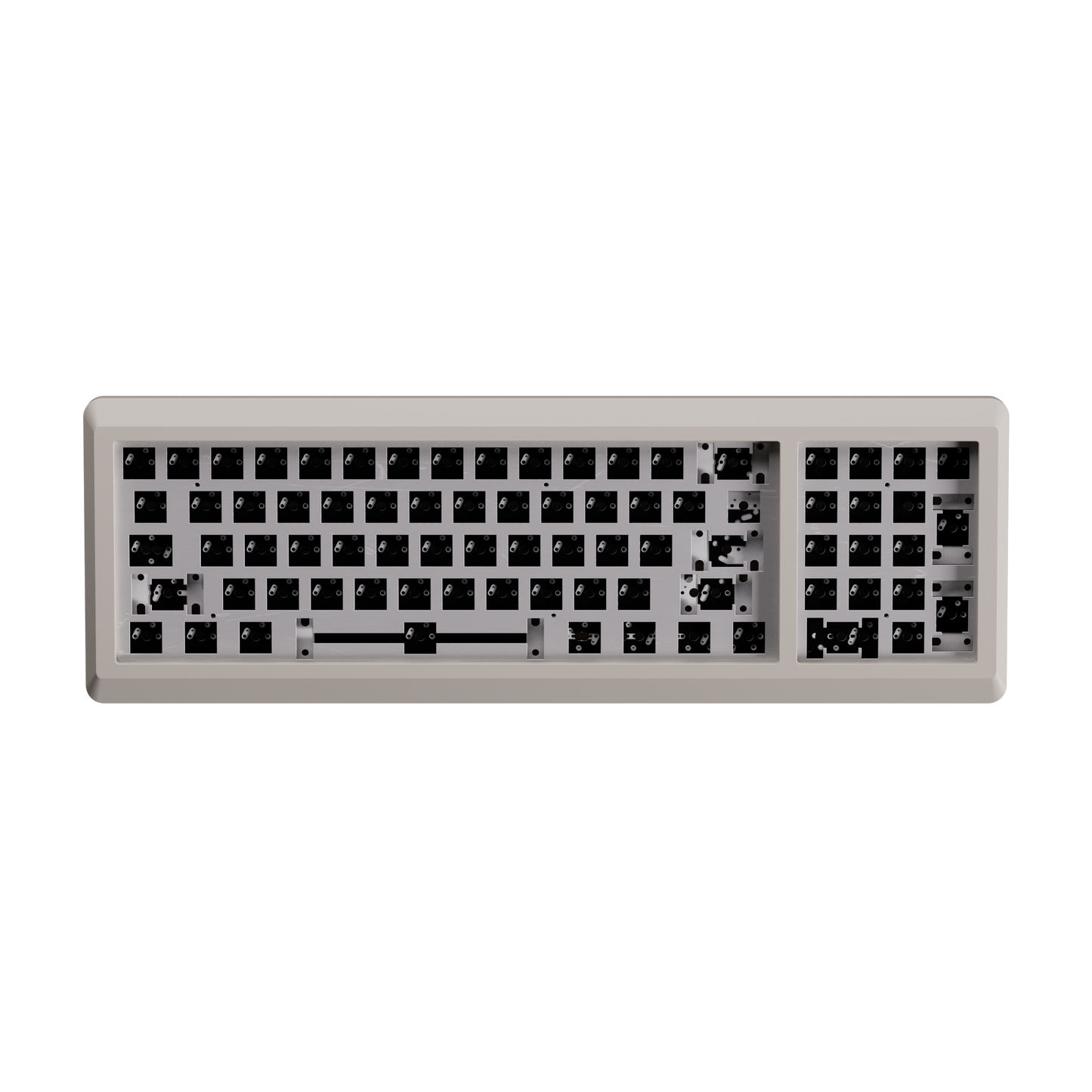

  • E-creamy

    Out of Stock

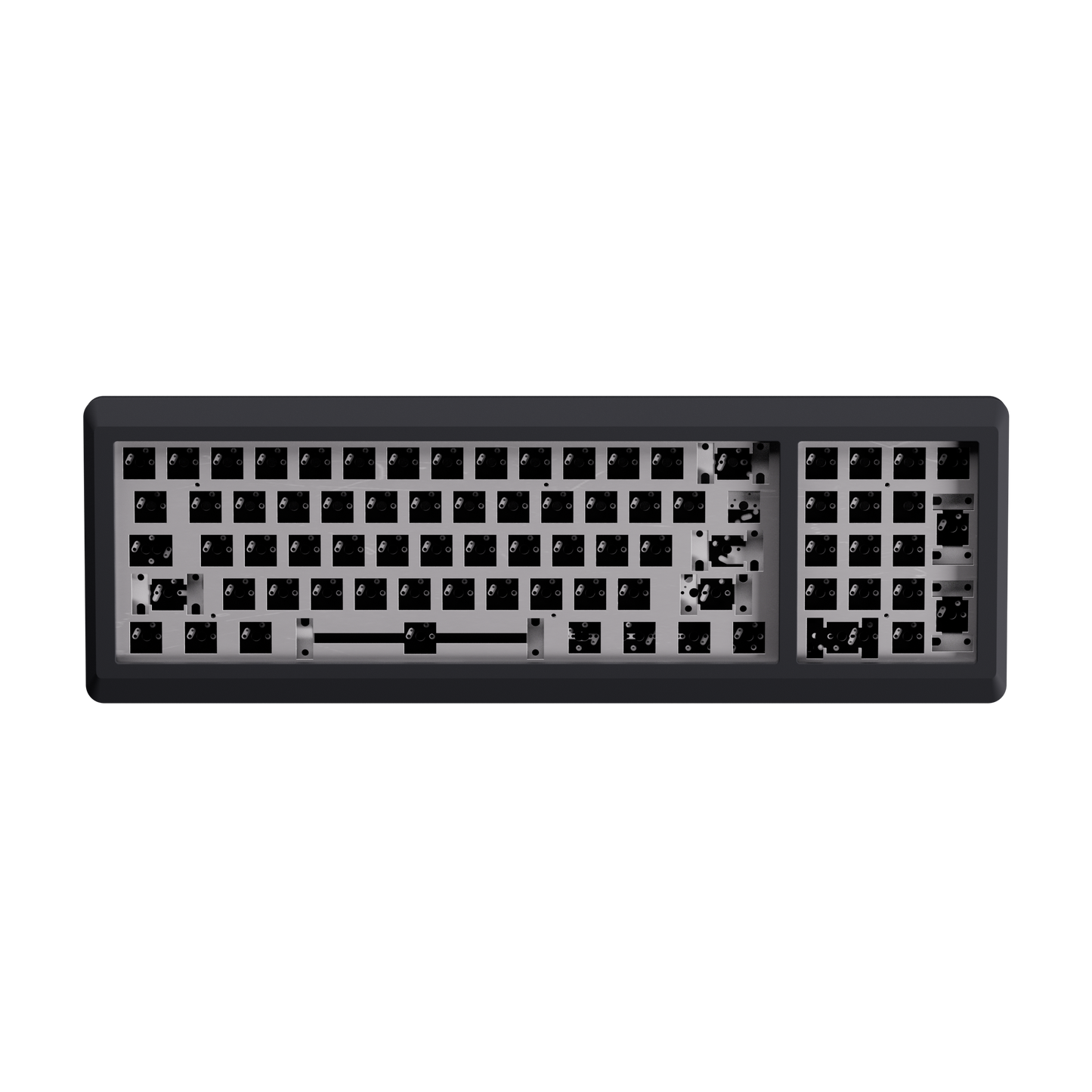

  • Anodized Space Grey

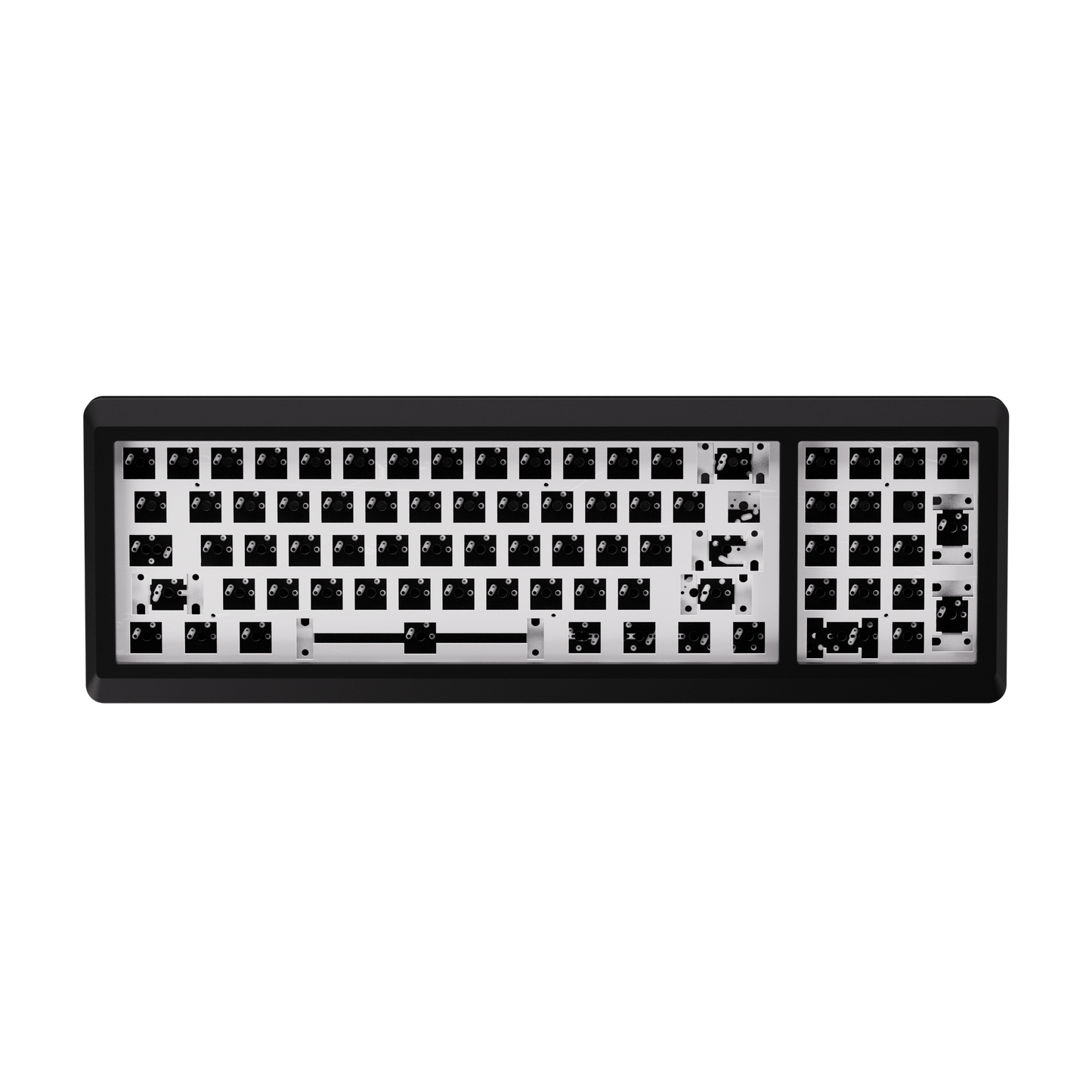

  • Anodized Black

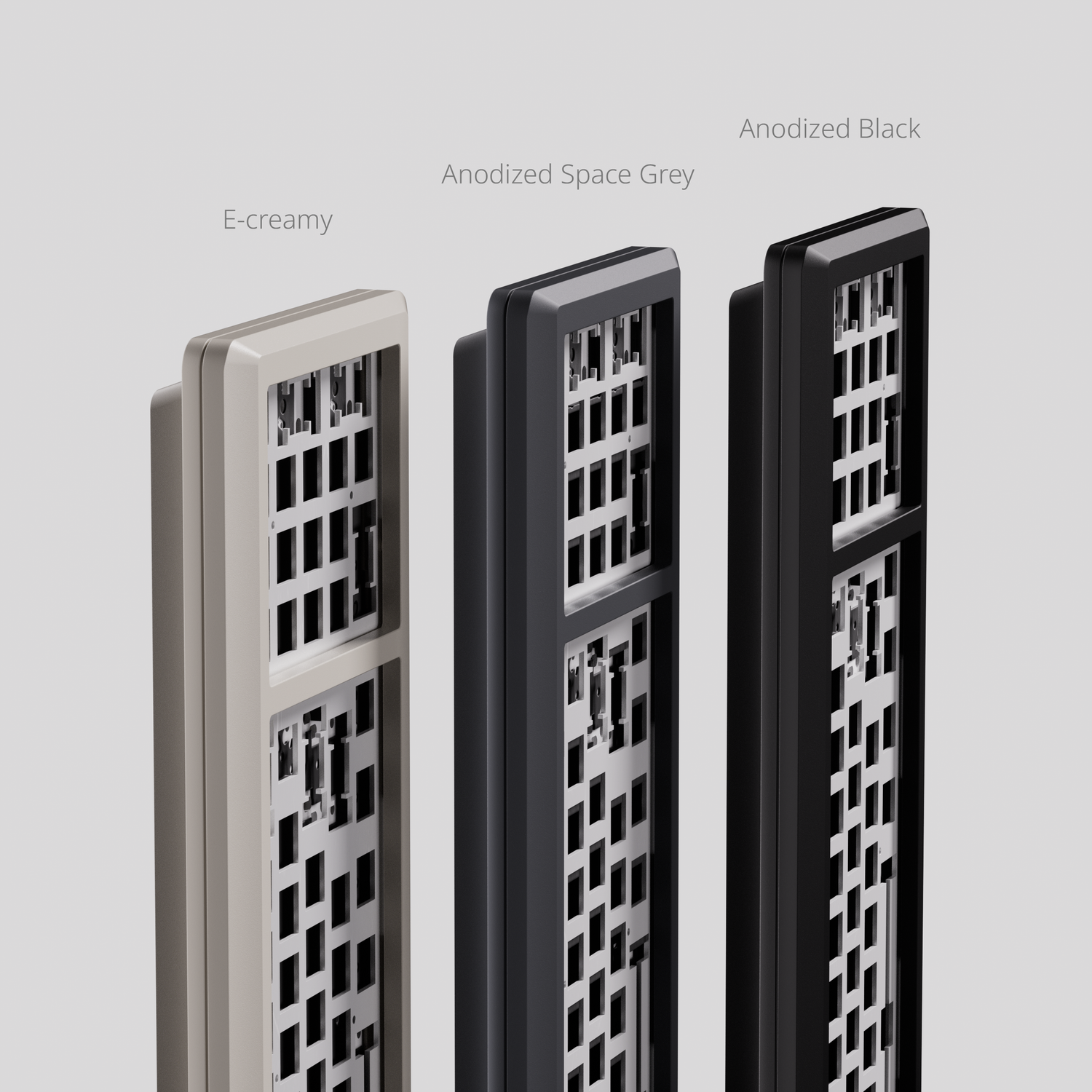

Color options

Available in E-creamy, Anodized space grey and anodized black

Made in Taiwan

CNC & E-coating

CNC manufacturing method with sand blasting surface treatment then coated in E-creamy color

ANSI & ISO Shares The Same PCB and FR4 Plate

Layout interchangeable for user's own preference during assembling

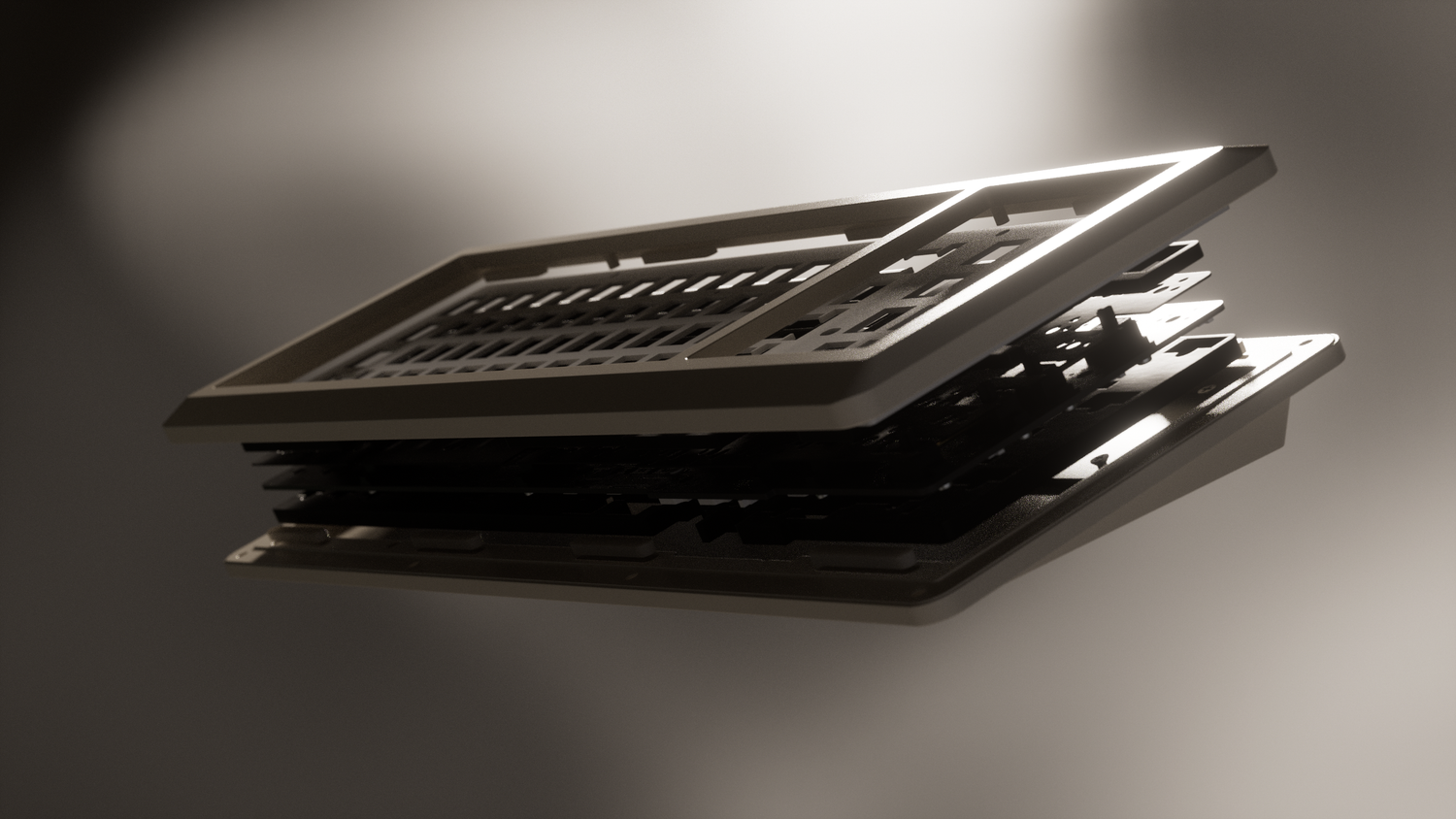

Gasket Mount

Provides a better typing experience even with hard aluminum case

Supports PCB Mount Stabilizer

PCB Mount Stabilizers offer improved typing consistency and reduced key rattle, enhancing the overall typing experience

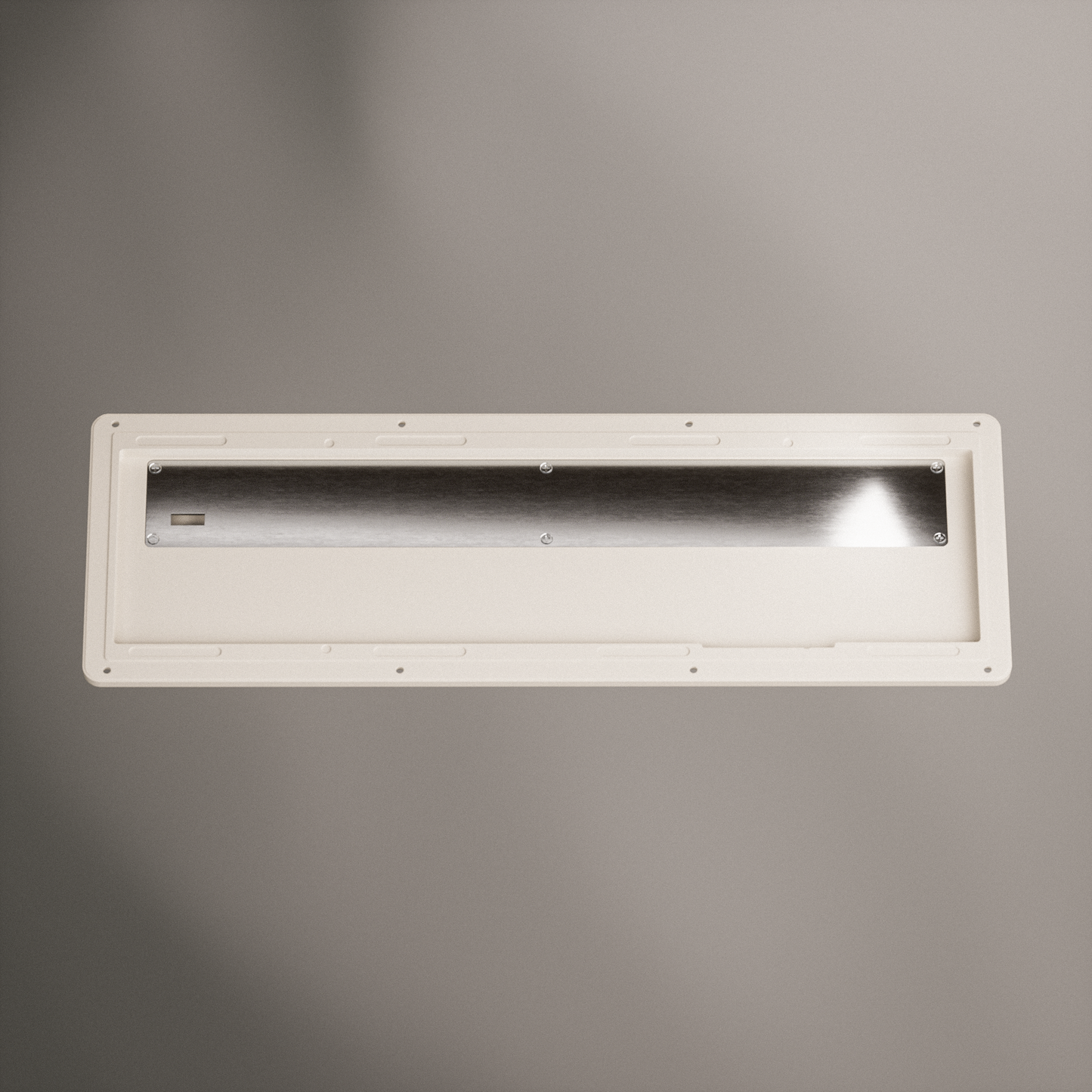

Bottom Stainless Plate

Covers the daughter board, provides a sleek and esthetically pleasing finish for the bottom case

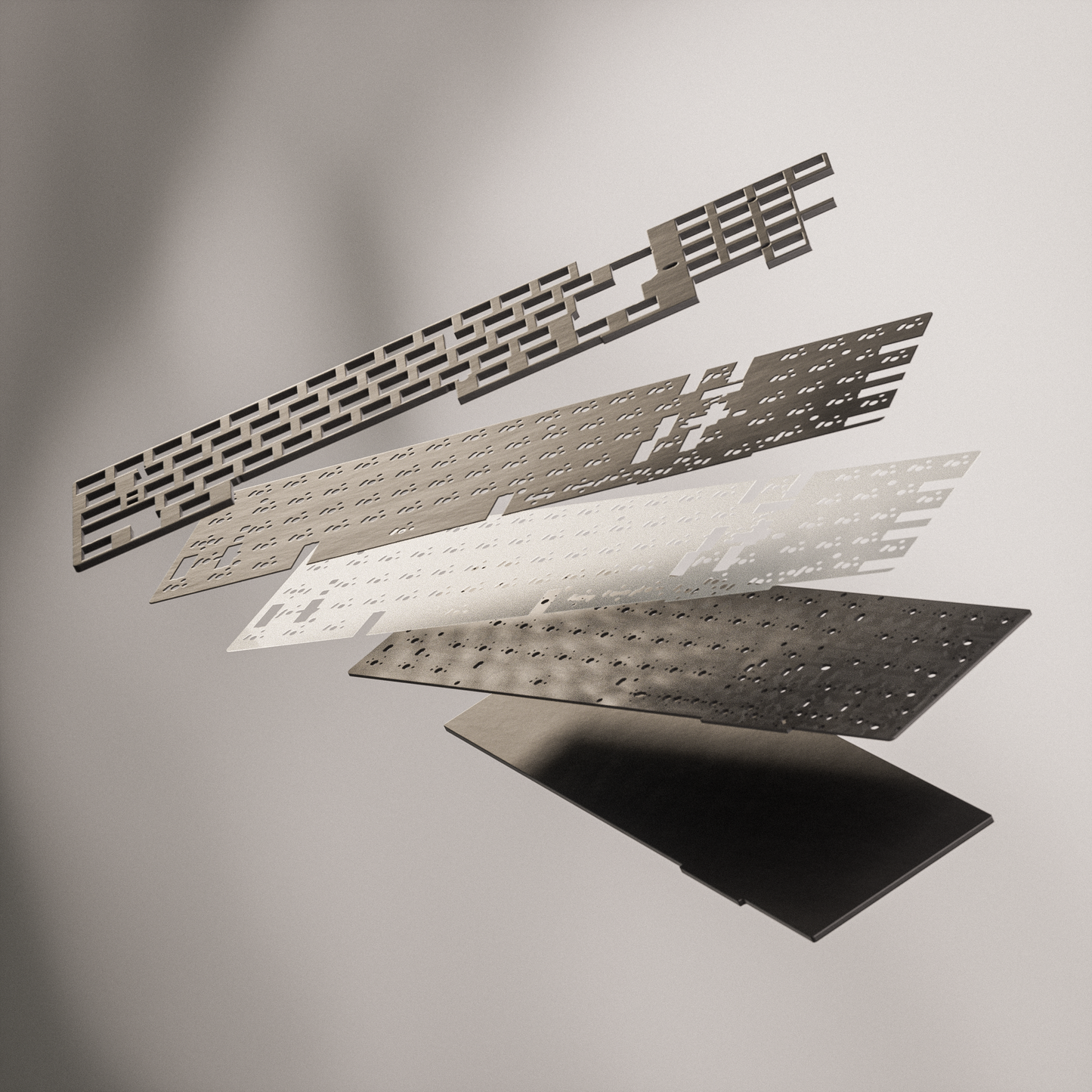

Foam Set

Different kinds of foams including poron plate foam, case foam, IXPE switch pad and pet pad for users to assemble with based on your own preferences

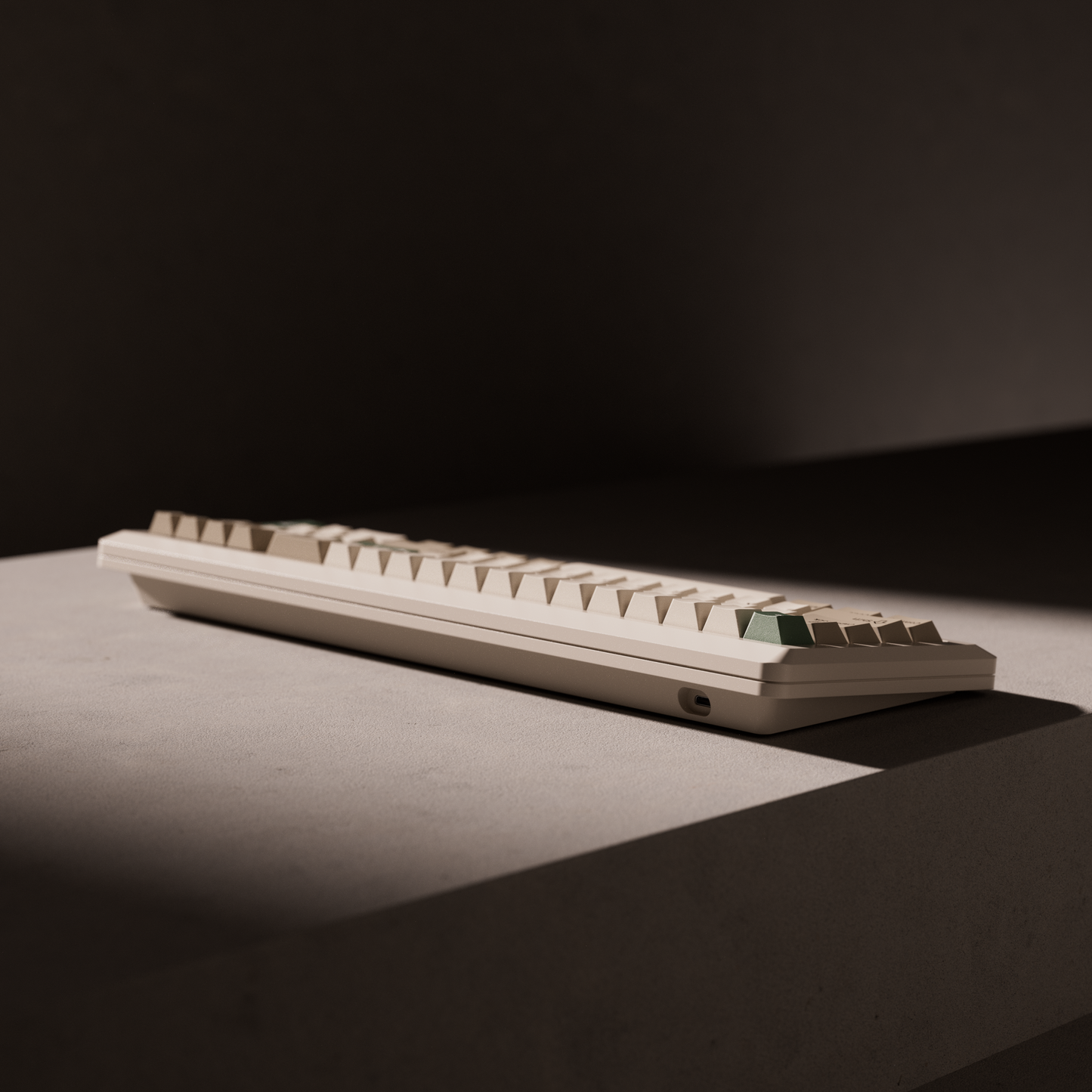

TYPING ANGLE

7 Degree

Hot swappable PCB Supports 3 pin and 5 pin mechanical switches

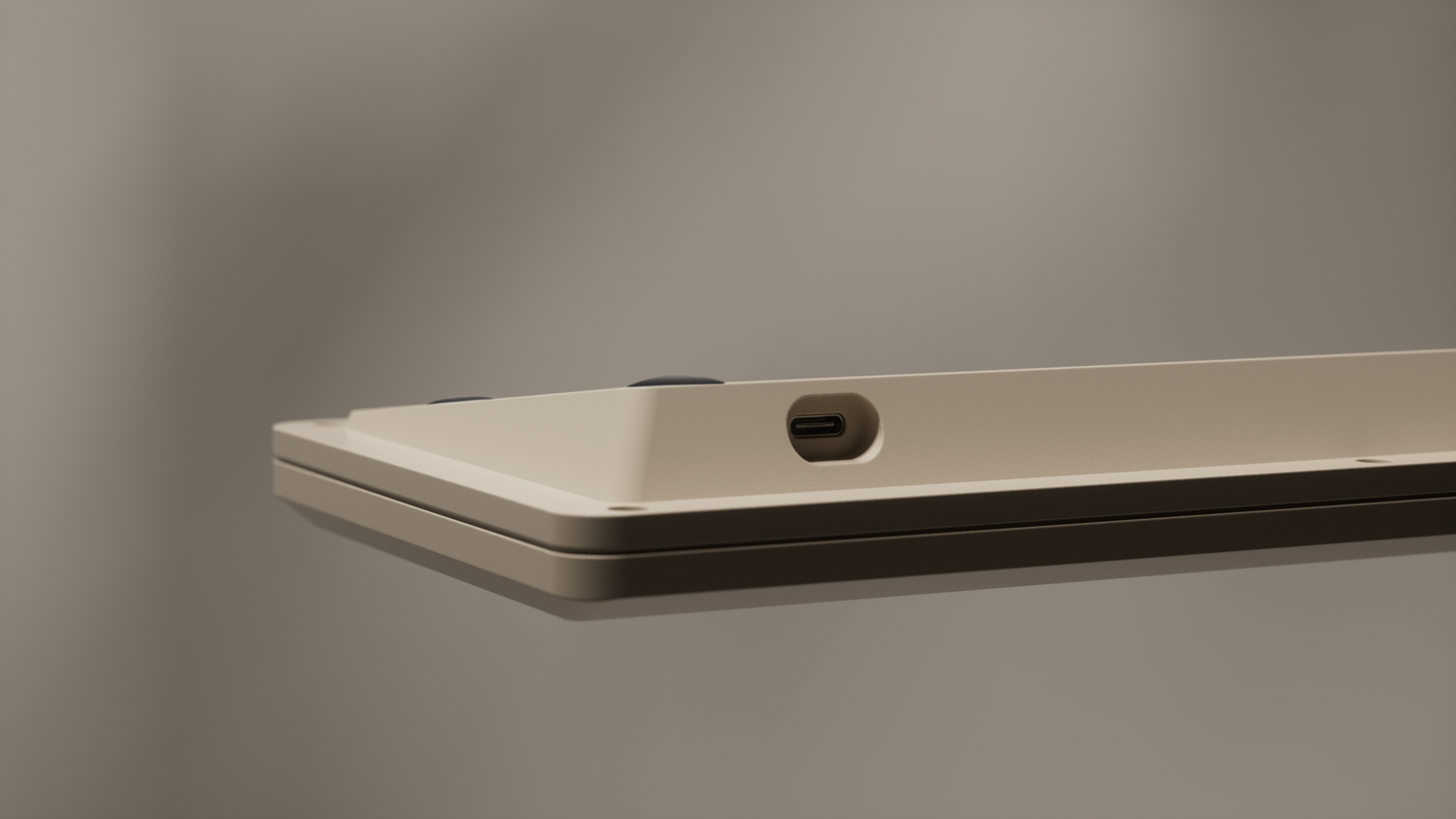

WIRED CONNECTION

Type-c connectivity and supports QMK/VIA

Programable and customizable with QMK/VIA (V3)

M0110A and M0110A-1800 share the same bin file and json file

Only supports VIA V3

If you want to change the configuration (US/EU/split Bksp and split left Shift), please switch the configuration through the second "layout" icon in the lower left of the VIA interface

Related Documents

Standardized Factory Default Layout

  • ANSI

  • ISO

VIA Default Layout

  • ANSI

  • ISO

Supports split backspace

  • ANSI

  • ISO

Split Backspace VIA Layout

  • ANSI

  • ISO

Different Layout

M0110A-1800 Kit

With arrow keys

Preorder Now

Warranty

Only fully assembled products are eligible for 12 months warranty

Note

  • You may cancel your order anytime during the pre-order period.
  • Pre-orders cannot be cancelled after the pre-order period has ended or after the pre-order has been closed!!!
  • To ensure a smooth and successful shipment of your order, please provide your shipping information in English.
  • All pictures shown are for illustration purpose only. Actual products may vary due to product enhancement.
  • Duties and taxes are not included in shipping fee.
  • After 7 days, we will no longer provide return, refund, and exchange.
  • Duties and taxes are not included in refunds.
